Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CcTravelerRequestLogPush
Used by (from the same schema document)	Element ccTravelerRequestLogPush
Abstract	no

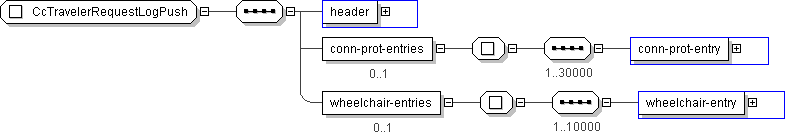

XML Instance Representation

<...>

<header> CPTPushHeader </header> [1]

<conn-prot-entries> [0..1]
Start Sequence [1..30000]

<conn-prot-entry> CCConnProtLogEntry </conn-prot-entry> [1]

End Sequence
</conn-prot-entries>

<wheelchair-entries> [0..1]
Start Sequence [1..10000]

<wheelchair-entry> CCWheelchairLogEntry </wheelchair-entry> [1]

End Sequence
</wheelchair-entries>

</...>

Schema Component Representation

<xs:complexType name="CcTravelerRequestLogPush">

<xs:sequence>

<xs:element name="header" type=" CPTPushHeader "/>

<xs:element name="conn-prot-entries" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="30000">

<xs:element name="conn-prot-entry" type=" CCConnProtLogEntry "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="wheelchair-entries" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10000">

<xs:element name="wheelchair-entry" type=" CCWheelchairLogEntry "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
