Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

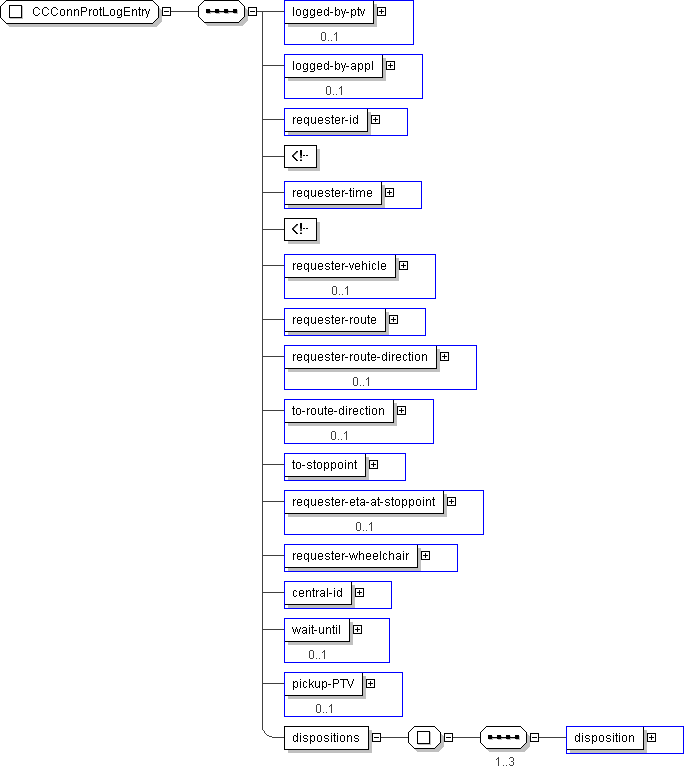

Name	CCConnProtLogEntry
Used by (from the same schema document)	Complex Type CcPTVPerformanceData , Complex Type CcTravelerRequestLog , Complex Type CcTravelerRequestLogPush
Abstract	no

XML Instance Representation

<...>

<logged-by-ptv> CPTVehicleIden </logged-by-ptv> [0..1]

<logged-by-appl> CPT-ApplicationID </logged-by-appl> [0..1]

<requester-id> CC-TravelerRequestID </requester-id> [1]

<requester-time> CPT-DateTime </requester-time> [1]

<requester-vehicle> CPTVehicleIden </requester-vehicle> [0..1]

<requester-route> SCHRouteIden </requester-route> [1]

<requester-route-direction> lrms:Direction </requester-route-direction> [0..1]

<to-route-direction> lrms:Direction </to-route-direction> [0..1]

<to-stoppoint> CPTStoppointIden </to-stoppoint> [1]

<requester-eta-at-stoppoint> CPT-DateTime </requester-eta-at-stoppoint> [0..1]

<requester-wheelchair> CPT-Boolean </requester-wheelchair> [1]

<central-id> CC-TravelerRequestID </central-id> [1]

<wait-until> CPT-DateTime </wait-until> [0..1]

<pickup-PTV> CPTVehicleIden </pickup-PTV> [0..1]

<dispositions> [1]
Start Sequence [1..3]

<disposition> CC-RequestDisposition </disposition> [1]

End Sequence
</dispositions>

</...>

Schema Component Representation

<xs:complexType name="CCConnProtLogEntry">

<xs:sequence>

<xs:element name="logged-by-ptv" type=" CPTVehicleIden " minOccurs="0"/>

<xs:element name="logged-by-appl" type=" CPT-ApplicationID " minOccurs="0"/>

<xs:element name="requester-id" type=" CC-TravelerRequestID "/>

<-- assigned by requester entity -->

<xs:element name="requester-time" type=" CPT-DateTime "/>

<-- timerequested -->

<xs:element name="requester-vehicle" type=" CPTVehicleIden " minOccurs="0"/>

<xs:element name="requester-route" type=" SCHRouteIden "/>

<xs:element name="requester-route-direction" type=" lrms:Direction " minOccurs="0"/>

<xs:element name="to-route-direction" type=" lrms:Direction " minOccurs="0"/>

<xs:element name="to-stoppoint" type=" CPTStoppointIden "/>

<xs:element name="requester-eta-at-stoppoint" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="requester-wheelchair" type=" CPT-Boolean "/>

<xs:element name="central-id" type=" CC-TravelerRequestID "/>

<xs:element name="wait-until" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="pickup-PTV" type=" CPTVehicleIden " minOccurs="0"/>

<xs:element name="dispositions">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="3">

<xs:element name="disposition" type=" CC-RequestDisposition "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:

Complex Type: CCConnProtLogEntry
