Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SchPushBlockSchedule
Used by (from the same schema document)	Element schPushBlockSchedule
Abstract	no

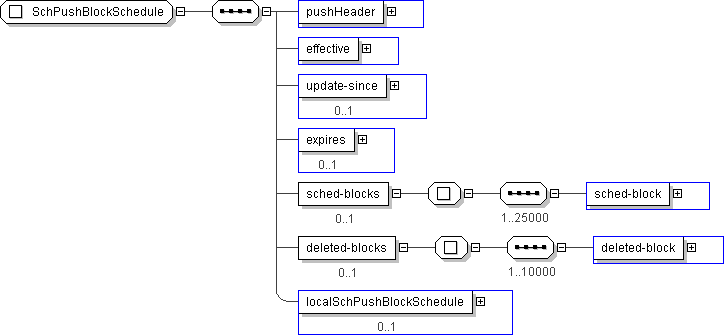

XML Instance Representation

<...>

<pushHeader> CPTPushHeader </pushHeader> [1]

<effective> CPT-DateTime </effective> [1]

<update-since> CPT-DateTime </update-since> [0..1]

<expires> CPT-DateTime </expires> [0..1]

<sched-blocks> [0..1]
Start Sequence [1..25000]

<sched-block> SCHBlockScheduleEntry </sched-block> [1]

End Sequence
</sched-blocks>

<deleted-blocks> [0..1]
Start Sequence [1..10000]

<deleted-block> SCHBlockIden </deleted-block> [1]

End Sequence
</deleted-blocks>

<localSchPushBlockSchedule> local:SchPushBlockSchedule </localSchPushBlockSchedule> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SchPushBlockSchedule">

<xs:sequence>

<xs:element name="pushHeader" type=" CPTPushHeader "/>

<xs:element name="effective" type=" CPT-DateTime "/>

<xs:element name="update-since" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="expires" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="sched-blocks" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="25000">

<xs:element name="sched-block" type=" SCHBlockScheduleEntry "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="deleted-blocks" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10000">

<xs:element name="deleted-block" type=" SCHBlockIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localSchPushBlockSchedule" type=" local:SchPushBlockSchedule " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
