Documentation for ATIS-Draft-03-00-79

Element: schPushBlockSchedule

[Table of contents]

Name schPushBlockSchedule
Type SchPushBlockSchedule
Nillable no
Abstract no

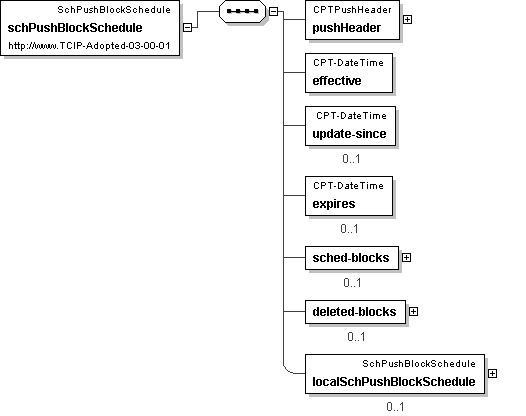

Logical Diagram
h2014085994 h-697143873 h743858525 h-1758817126
XML Instance Representation
<schPushBlockSchedule>
<pushHeader> CPTPushHeader </pushHeader> [1]
<effective> CPT-DateTime </effective> [1]
<update-since> CPT-DateTime </update-since> [0..1]
<expires> CPT-DateTime </expires> [0..1]
<sched-blocks> [0..1]
Start Sequence [1..25000]
<sched-block> SCHBlockScheduleEntry </sched-block> [1]
End Sequence
</sched-blocks>
<deleted-blocks> [0..1]
Start Sequence [1..10000]
<deleted-block> SCHBlockIden </deleted-block> [1]
End Sequence
</deleted-blocks>
<localSchPushBlockSchedule> local:SchPushBlockSchedule </localSchPushBlockSchedule> [0..1]
</schPushBlockSchedule>

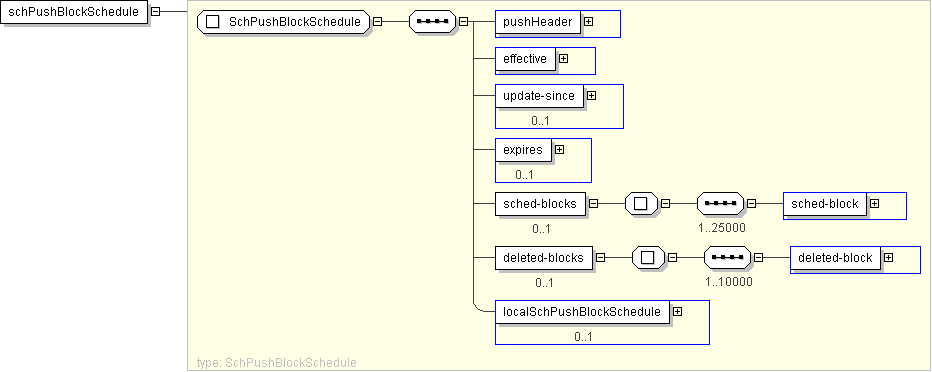

Diagram
h-1737467159 h1272267302 h1272267302 h1272267302 h-1924220063 h-258889474 h-1190668265
Schema Component Representation
<xs:element name="schPushBlockSchedule" type=" SchPushBlockSchedule "/>
