Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SCHBlockIden
Used by (from the same schema document)	Complex Type CcOperatorSignOff , Complex Type SchBlockScheduleFile , Complex Type SchBlockScheduleList , Complex Type SchBlockScheduleList , Complex Type SchBlockScheduleListSub , Complex Type SchPushBlockSchedule , Complex Type SchPushVehicleAssignments , Complex Type SchVehicleAssignmentFile , Complex Type SchVehicleAssignmentList , Complex Type SpRouteGeoTrace , Complex Type SpRouteGeoTraceSub , Complex Type CCBlockWorkRecord , Complex Type CCLogOnOperator , Complex Type CCVehicleAssignmentChange , Complex Type IMPTVehicleInvolved , Complex Type OBStoppointRecord , Complex Type SCHBlockScheduleEntry , Complex Type SCHBlockSubsetsGroup , Complex Type SCHOperatorAssignment , Complex Type SCHPullInOutInfo , Complex Type SCHTripInfo , Complex Type SCHValidationError , Complex Type SCHVehicleAssignment , Complex Type TSPPRGInputsCCEntry
Abstract	no

XML Instance Representation

<...>

<block-id> SCH-BlockID </block-id> [1]

<agency-id> CPT-AgencyID </agency-id> [0..1]

<block-designator> SCH-BlockDesignator </block-designator> [0..1]

<block-name> SCH-BlockName </block-name> [0..1]

</...>

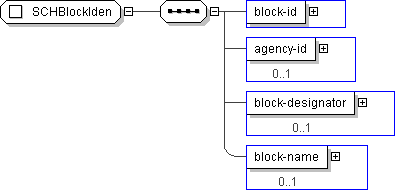

Diagram

Schema Component Representation

<xs:complexType name="SCHBlockIden">

<xs:sequence>

<xs:element name="block-id" type=" SCH-BlockID "/>

<xs:element name="agency-id" type=" CPT-AgencyID " minOccurs="0"/>

<xs:element name="block-designator" type=" SCH-BlockDesignator " minOccurs="0"/>

<xs:element name="block-name" type=" SCH-BlockName " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
