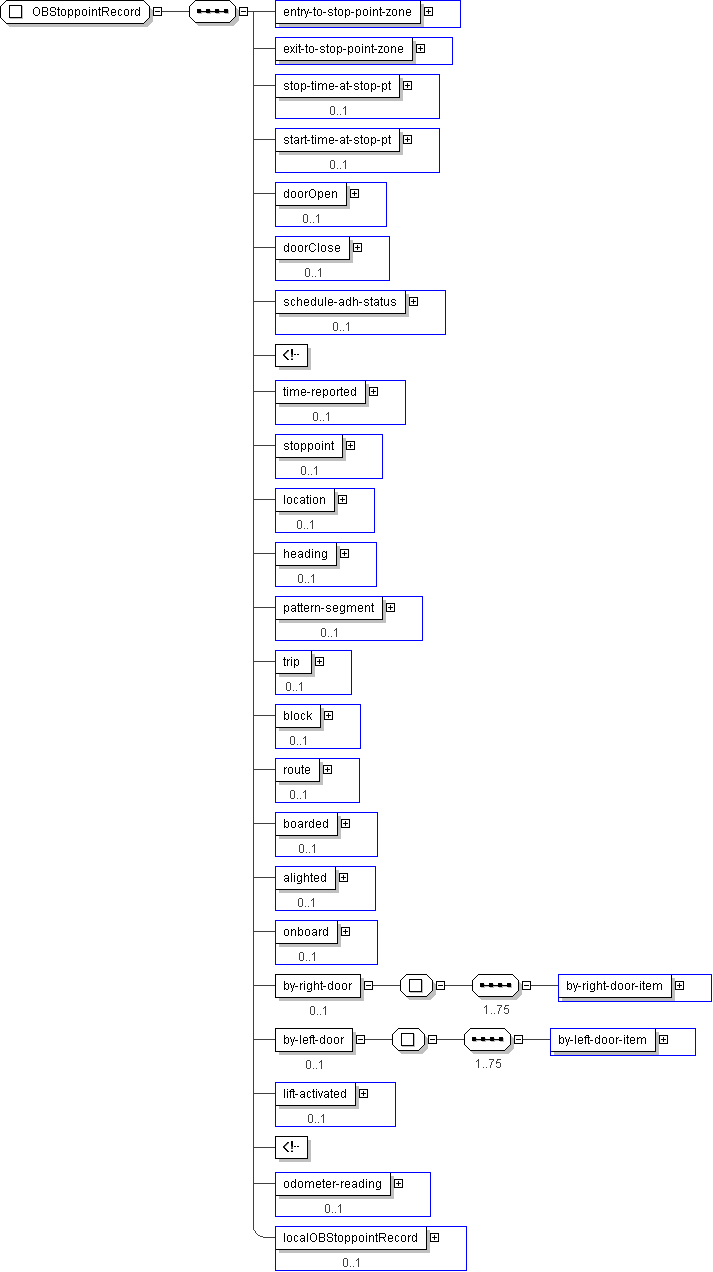

Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	OBStoppointRecord
Used by (from the same schema document)	Complex Type ObPassengerCount , Complex Type CCBlockWorkRecord , Complex Type CCVehiclePassRecord
Abstract	no

XML Instance Representation

<...>

<entry-to-stop-point-zone> CPT-Time </entry-to-stop-point-zone> [1]

<exit-to-stop-point-zone> CPT-Time </exit-to-stop-point-zone> [1]

<stop-time-at-stop-pt> CPT-Time </stop-time-at-stop-pt> [0..1]

<start-time-at-stop-pt> CPT-Time </start-time-at-stop-pt> [0..1]

<doorOpen> CPT-Time </doorOpen> [0..1]

<doorClose> CPT-Time </doorClose> [0..1]

<schedule-adh-status> OB-ScheduleAdherenceOffset </schedule-adh-status> [0..1]

<time-reported> CPT-DateTime </time-reported> [0..1]

<stoppoint> CPTStoppointIden </stoppoint> [0..1]

<location> lrms:GeoLocation </location> [0..1]

<heading> SP-AngularDirection </heading> [0..1]

<pattern-segment> SCHPatternSegmentIden </pattern-segment> [0..1]

<trip> SCHTripIden </trip> [0..1]

<block> SCHBlockIden </block> [0..1]

<route> SCHRouteIden </route> [0..1]

<boarded> OB-PassengerBoarding </boarded> [0..1]

<alighted> OB-PassengerAlighting </alighted> [0..1]

<onboard> OB-J1587-PassengerCounterPatronCount </onboard> [0..1]

<by-right-door> [0..1]
Start Sequence [1..75]

<by-right-door-item> OBBoardAlightRecord </by-right-door-item> [1]

End Sequence
</by-right-door>

<by-left-door> [0..1]
Start Sequence [1..75]

<by-left-door-item> OBBoardAlightRecord </by-left-door-item> [1]

End Sequence
</by-left-door>

<lift-activated> CPT-Boolean </lift-activated> [0..1]

<odometer-reading> CPT-GenericCounter </odometer-reading> [0..1]

<localOBStoppointRecord> local:OBStoppointRecord </localOBStoppointRecord> [0..1]

</...>

Schema Component Representation

<xs:complexType name="OBStoppointRecord">

<xs:sequence>

<xs:element name="entry-to-stop-point-zone" type=" CPT-Time "/>

<xs:element name="exit-to-stop-point-zone" type=" CPT-Time "/>

<xs:element name="stop-time-at-stop-pt" type=" CPT-Time " minOccurs="0"/>

<xs:element name="start-time-at-stop-pt" type=" CPT-Time " minOccurs="0"/>

<xs:element name="doorOpen" type=" CPT-Time " minOccurs="0"/>

<xs:element name="doorClose" type=" CPT-Time " minOccurs="0"/>

<xs:element name="schedule-adh-status" type=" OB-ScheduleAdherenceOffset " minOccurs="0"/>

<-- status -->

<xs:element name="time-reported" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="stoppoint" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="location" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="heading" type=" SP-AngularDirection " minOccurs="0"/>

<xs:element name="pattern-segment" type=" SCHPatternSegmentIden " minOccurs="0"/>

<xs:element name="trip" type=" SCHTripIden " minOccurs="0"/>

<xs:element name="block" type=" SCHBlockIden " minOccurs="0"/>

<xs:element name="route" type=" SCHRouteIden " minOccurs="0"/>

<xs:element name="boarded" type=" OB-PassengerBoarding " minOccurs="0"/>

<xs:element name="alighted" type=" OB-PassengerAlighting " minOccurs="0"/>

<xs:element name="onboard" type=" OB-J1587-PassengerCounterPatronCount " minOccurs="0"/>

<xs:element name="by-right-door" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="75">

<xs:element name="by-right-door-item" type=" OBBoardAlightRecord "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="by-left-door" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="75">

<xs:element name="by-left-door-item" type=" OBBoardAlightRecord "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="lift-activated" type=" CPT-Boolean " minOccurs="0"/>

<-- include if lift is instrumented -->

<xs:element name="odometer-reading" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="localOBStoppointRecord" type=" local:OBStoppointRecord " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
