Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SCHBlockSubsetsGroup
Abstract	no

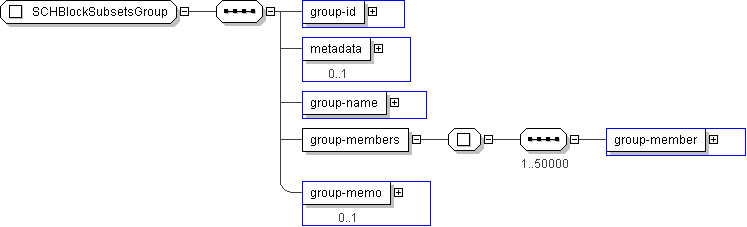

XML Instance Representation

<...>

<group-id> SCH-BlockSubset </group-id> [1]

<metadata> CPTRowMetaData </metadata> [0..1]

<group-name> CPT-GroupName </group-name> [1]

<group-members> [1]
Start Sequence [1..50000]

<group-member> SCHBlockIden </group-member> [1]

End Sequence
</group-members>

<group-memo> CPT-Footnote </group-memo> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SCHBlockSubsetsGroup">

<xs:sequence>

<xs:element name="group-id" type=" SCH-BlockSubset "/>

<xs:element name="metadata" type=" CPTRowMetaData " minOccurs="0"/>

<xs:element name="group-name" type=" CPT-GroupName "/>

<xs:element name="group-members">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="50000">

<xs:element name="group-member" type=" SCHBlockIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="group-memo" type=" CPT-Footnote " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
