Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

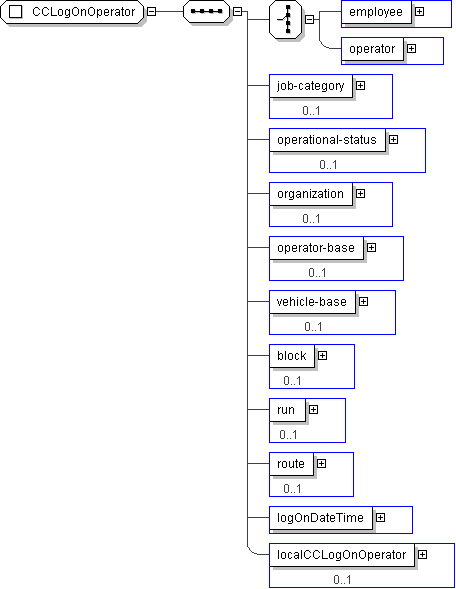

Name	CCLogOnOperator
Used by (from the same schema document)	Complex Type CcOperatorSignOn , Complex Type ObSignon
Abstract	no

XML Instance Representation

<...>
Start Choice [1]

<employee> CPTEmployeeIden </employee> [1]

<operator> CPTOperatorIden </operator> [1]

End Choice

<job-category> CPT-EmplJobCat </job-category> [0..1]

<operational-status> SCH-ServiceType </operational-status> [0..1]

<organization> CPTOrganizationalUnitIden </organization> [0..1]

<operator-base> CPTTransitFacilityIden </operator-base> [0..1]

<vehicle-base> CPTTransitFacilityIden </vehicle-base> [0..1]

<block> SCHBlockIden </block> [0..1]

<run> SCHRunIden </run> [0..1]

<route> SCHRouteIden </route> [0..1]

<logOnDateTime> CPT-DateTime </logOnDateTime> [1]

<localCCLogOnOperator> local:CCLogOnOperator </localCCLogOnOperator> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CCLogOnOperator">

<xs:sequence>

<xs:choice>

<xs:element name="employee" type=" CPTEmployeeIden "/>

<xs:element name="operator" type=" CPTOperatorIden "/>

</xs:choice>

<xs:element name="job-category" type=" CPT-EmplJobCat " minOccurs="0"/>

<xs:element name="operational-status" type=" SCH-ServiceType " minOccurs="0"/>

<xs:element name="organization" type=" CPTOrganizationalUnitIden " minOccurs="0"/>

<xs:element name="operator-base" type=" CPTTransitFacilityIden " minOccurs="0"/>

<xs:element name="vehicle-base" type=" CPTTransitFacilityIden " minOccurs="0"/>

<xs:element name="block" type=" SCHBlockIden " minOccurs="0"/>

<xs:element name="run" type=" SCHRunIden " minOccurs="0"/>

<xs:element name="route" type=" SCHRouteIden " minOccurs="0"/>

<xs:element name="logOnDateTime" type=" CPT-DateTime "/>

<xs:element name="localCCLogOnOperator" type=" local:CCLogOnOperator " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
