Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SCHRunIden
Used by (from the same schema document)	Complex Type CcOperatorSignOff , Complex Type SchOperatorAssignmentFile , Complex Type SchOperatorAssignmentList , Complex Type SchPushOperatorAssignments , Complex Type SchRunScheduleFile , Complex Type SchRunScheduleList , Complex Type SchRunScheduleList , Complex Type SchRunScheduleListSub , Complex Type SpRouteGeoTrace , Complex Type SpRouteGeoTraceSub , Complex Type CCLogOnOperator , Complex Type CCOperatorAssignmentChange , Complex Type CCRouteDeviationRecord , Complex Type CCSignOnOff , Complex Type CCTimepointHistory , Complex Type IMPTVehicleInvolved , Complex Type PIFoundItem , Complex Type PILostItem , Complex Type SCHOperatorAssignment , Complex Type SCHPullInOutInfo , Complex Type SCHRoster , Complex Type SCHRunScheduleEntry , Complex Type SCHTripInfo , Complex Type SCHValidationError , Complex Type TSPStatus
Abstract	no

XML Instance Representation

<...>

<run-id> SCH-RunID </run-id> [1]

<agency-id> CPT-AgencyID </agency-id> [0..1]

<designator> SCH-RunDesignator </designator> [0..1]

</...>

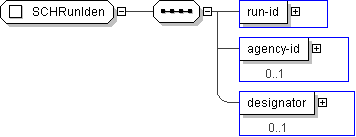

Diagram

Schema Component Representation

<xs:complexType name="SCHRunIden">

<xs:sequence>

<xs:element name="run-id" type=" SCH-RunID "/>

<xs:element name="agency-id" type=" CPT-AgencyID " minOccurs="0"/>

<xs:element name="designator" type=" SCH-RunDesignator " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
