Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

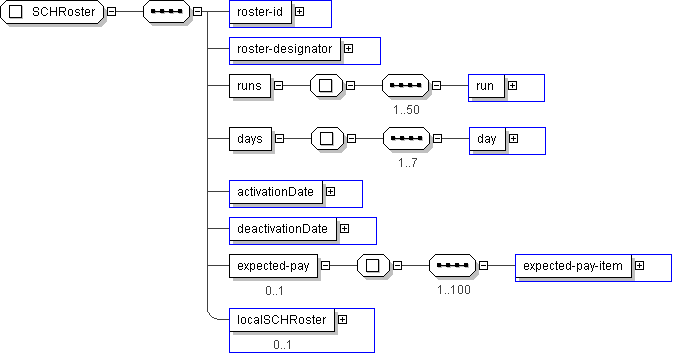

Name	SCHRoster
Used by (from the same schema document)	Complex Type SchPushRoster , Complex Type SchRosterList
Abstract	no

XML Instance Representation

<...>

<roster-id> SCH-RosterID </roster-id> [1]

<roster-designator> SCH-RosterDesignator </roster-designator> [1]

<runs> [1]
Start Sequence [1..50]

<run> SCHRunIden </run> [1]

End Sequence
</runs>

<days> [1]
Start Sequence [1..7]

<day> CPT-DayofWeek </day> [1]

End Sequence
</days>

<activationDate> CPT-Date </activationDate> [1]

<deactivationDate> CPT-Date </deactivationDate> [1]

<expected-pay> [0..1]
Start Sequence [1..100]

<expected-pay-item> SCHOperatorPay </expected-pay-item> [1]

End Sequence
</expected-pay>

<localSCHRoster> local:SCHRoster </localSCHRoster> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SCHRoster">

<xs:sequence>

<xs:element name="roster-id" type=" SCH-RosterID "/>

<xs:element name="roster-designator" type=" SCH-RosterDesignator "/>

<xs:element name="runs">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="50">

<xs:element name="run" type=" SCHRunIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="days">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="7">

<xs:element name="day" type=" CPT-DayofWeek "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="activationDate" type=" CPT-Date "/>

<xs:element name="deactivationDate" type=" CPT-Date "/>

<xs:element name="expected-pay" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="expected-pay-item" type=" SCHOperatorPay "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localSCHRoster" type=" local:SCHRoster " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
