Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

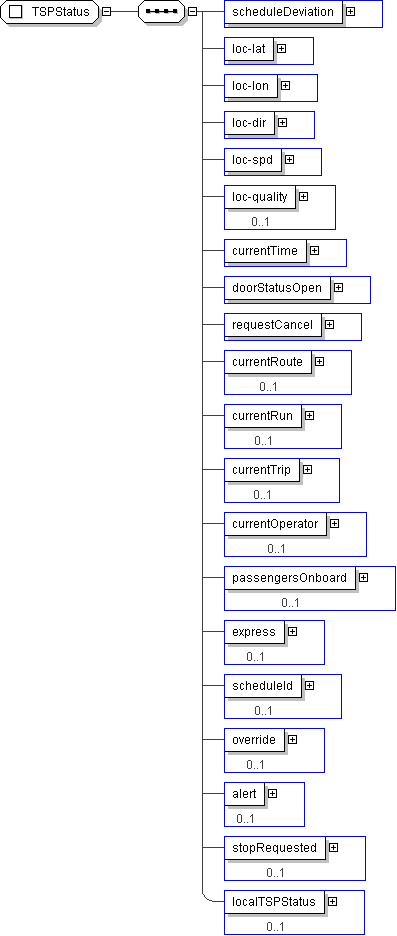

Name	TSPStatus
Used by (from the same schema document)	Complex Type TspPRGInputsPTV , Complex Type TSPPRGInputsCCEntry
Abstract	no

XML Instance Representation

<...>

<scheduleDeviation> OB-ScheduleAdherenceOffset </scheduleDeviation> [1]

<loc-lat> lrms:Latitude </loc-lat> [1]

<loc-lon> lrms:Longitude </loc-lon> [1]

<loc-dir> lrms:Angle </loc-dir> [1]

<loc-spd> OB-J1587-VelocityVectorSpeed </loc-spd> [1]

<loc-quality> SPDataQuality </loc-quality> [0..1]

<currentTime> CPT-DateTime </currentTime> [1]

<doorStatusOpen> CPT-Boolean </doorStatusOpen> [1]

<requestCancel> CPT-Boolean </requestCancel> [1]

<currentRoute> SCHRouteIden </currentRoute> [0..1]

<currentRun> SCHRunIden </currentRun> [0..1]

<currentTrip> SCHTripIden </currentTrip> [0..1]

<currentOperator> CPTOperatorIden </currentOperator> [0..1]

<passengersOnboard> OB-J1587-PassengerCounterPatronCount </passengersOnboard> [0..1]

<express> CPT-Boolean </express> [0..1]

<scheduleId> SCH-TimetableVersionID </scheduleId> [0..1]

<override> CPT-Boolean </override> [0..1]

<alert> CPT-Boolean </alert> [0..1]

<stopRequested> CPT-Boolean </stopRequested> [0..1]

<localTSPStatus> local:TSPStatus </localTSPStatus> [0..1]

</...>

Schema Component Representation

<xs:complexType name="TSPStatus">

<xs:sequence>

<xs:element name="scheduleDeviation" type=" OB-ScheduleAdherenceOffset "/>

<xs:element name="loc-lat" type=" lrms:Latitude "/>

<xs:element name="loc-lon" type=" lrms:Longitude "/>

<xs:element name="loc-dir" type=" lrms:Angle "/>

<xs:element name="loc-spd" type=" OB-J1587-VelocityVectorSpeed "/>

<xs:element name="loc-quality" type=" SPDataQuality " minOccurs="0"/>

<xs:element name="currentTime" type=" CPT-DateTime "/>

<xs:element name="doorStatusOpen" type=" CPT-Boolean "/>

<xs:element name="requestCancel" type=" CPT-Boolean "/>

<xs:element name="currentRoute" type=" SCHRouteIden " minOccurs="0"/>

<xs:element name="currentRun" type=" SCHRunIden " minOccurs="0"/>

<xs:element name="currentTrip" type=" SCHTripIden " minOccurs="0"/>

<xs:element name="currentOperator" type=" CPTOperatorIden " minOccurs="0"/>

<xs:element name="passengersOnboard" type=" OB-J1587-PassengerCounterPatronCount " minOccurs="0"/>

<xs:element name="express" type=" CPT-Boolean " minOccurs="0"/>

<xs:element name="scheduleId" type=" SCH-TimetableVersionID " minOccurs="0"/>

<xs:element name="override" type=" CPT-Boolean " minOccurs="0"/>

<xs:element name="alert" type=" CPT-Boolean " minOccurs="0"/>

<xs:element name="stopRequested" type=" CPT-Boolean " minOccurs="0"/>

<xs:element name="localTSPStatus" type=" local:TSPStatus " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
