Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

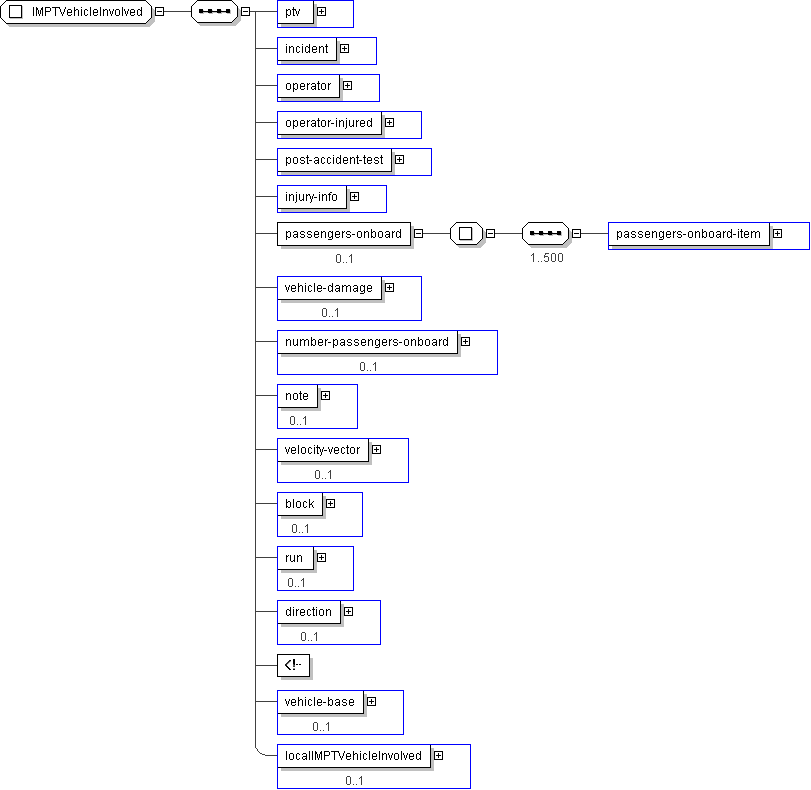

Name	IMPTVehicleInvolved
Used by (from the same schema document)	Complex Type IMIncident , Complex Type IMInjury
Abstract	no

XML Instance Representation

<...>

<ptv> CPTVehicleIden </ptv> [1]

<incident> IMIncidentIden </incident> [1]

<operator> CPTOperatorIden </operator> [1]

<operator-injured> IM-OperatorInjured </operator-injured> [1]

<post-accident-test> IM-PostAccidentTest </post-accident-test> [1]

<injury-info> IMInjuryInfo </injury-info> [1]

<passengers-onboard> [0..1]
Start Sequence [1..500]

<passengers-onboard-item> IMPerson </passengers-onboard-item> [1]

End Sequence
</passengers-onboard>

<vehicle-damage> IM-VehicleDamage </vehicle-damage> [0..1]

<number-passengers-onboard> IM-VehicleOccupantCount </number-passengers-onboard> [0..1]

<note> CPT-Footnote </note> [0..1]

<velocity-vector> OBBusVelocityVector </velocity-vector> [0..1]

<block> SCHBlockIden </block> [0..1]

<run> SCHRunIden </run> [0..1]

<direction> SCH-RouteDirectionName </direction> [0..1]

<vehicle-base> CPTTransitFacilityIden </vehicle-base> [0..1]

<localIMPTVehicleInvolved> local:IMPTVehicleInvolved </localIMPTVehicleInvolved> [0..1]

</...>

Schema Component Representation

<xs:complexType name="IMPTVehicleInvolved">

<xs:sequence>

<xs:element name="ptv" type=" CPTVehicleIden "/>

<xs:element name="incident" type=" IMIncidentIden "/>

<xs:element name="operator" type=" CPTOperatorIden "/>

<xs:element name="operator-injured" type=" IM-OperatorInjured "/>

<xs:element name="post-accident-test" type=" IM-PostAccidentTest "/>

<xs:element name="injury-info" type=" IMInjuryInfo "/>

<xs:element name="passengers-onboard" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="500">

<xs:element name="passengers-onboard-item" type=" IMPerson "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="vehicle-damage" type=" IM-VehicleDamage " minOccurs="0"/>

<xs:element name="number-passengers-onboard" type=" IM-VehicleOccupantCount " minOccurs="0"/>

<xs:element name="note" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="velocity-vector" type=" OBBusVelocityVector " minOccurs="0"/>

<xs:element name="block" type=" SCHBlockIden " minOccurs="0"/>

<xs:element name="run" type=" SCHRunIden " minOccurs="0"/>

<xs:element name="direction" type=" SCH-RouteDirectionName " minOccurs="0"/>

<-- code -->

<xs:element name="vehicle-base" type=" CPTTransitFacilityIden " minOccurs="0"/>

<xs:element name="localIMPTVehicleInvolved" type=" local:IMPTVehicleInvolved " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
