Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

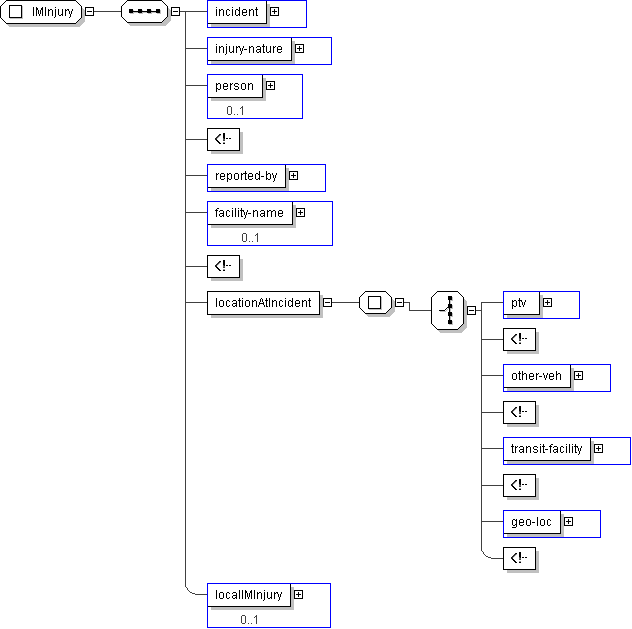

Name	IMInjury
Used by (from the same schema document)	Complex Type IMIncident
Abstract	no

XML Instance Representation

<...>

<incident> IMIncidentIden </incident> [1]

<injury-nature> IM-InjuryNature </injury-nature> [1]

<person> IMPerson </person> [0..1]

<reported-by> IMReportedBy </reported-by> [1]

<facility-name> IM-CareFacilityName </facility-name> [0..1]

<locationAtIncident> [1]
Start Choice [1]

<ptv> IMPTVehicleInvolved </ptv> [1]

<other-veh> IMOtherVehicleInvolved </other-veh> [1]

<transit-facility> CPTTransitFacilityIden </transit-facility> [1]

<geo-loc> lrms:GeoLocation </geo-loc> [1]

End Choice
</locationAtIncident>

<localIMInjury> local:IMInjury </localIMInjury> [0..1]

</...>

Schema Component Representation

<xs:complexType name="IMInjury">

<xs:sequence>

<xs:element name="incident" type=" IMIncidentIden "/>

<xs:element name="injury-nature" type=" IM-InjuryNature "/>

<xs:element name="person" type=" IMPerson " minOccurs="0"/>

<-- mandatory, if available -->

<xs:element name="reported-by" type=" IMReportedBy "/>

<xs:element name="facility-name" type=" IM-CareFacilityName " minOccurs="0"/>

<-- facility caring for injured person -->

<xs:element name="locationAtIncident">

<xs:complexType>

<xs:choice>

<xs:element name="ptv" type=" IMPTVehicleInvolved "/>

<-- person was on-board a PTV -->

<xs:element name="other-veh" type=" IMOtherVehicleInvolved "/>

<-- person in another veh -->

<xs:element name="transit-facility" type=" CPTTransitFacilityIden "/>

<-- person at transit fac -->

<xs:element name="geo-loc" type=" lrms:GeoLocation "/>

<-- geographic location -->

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="localIMInjury" type=" local:IMInjury " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
