Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

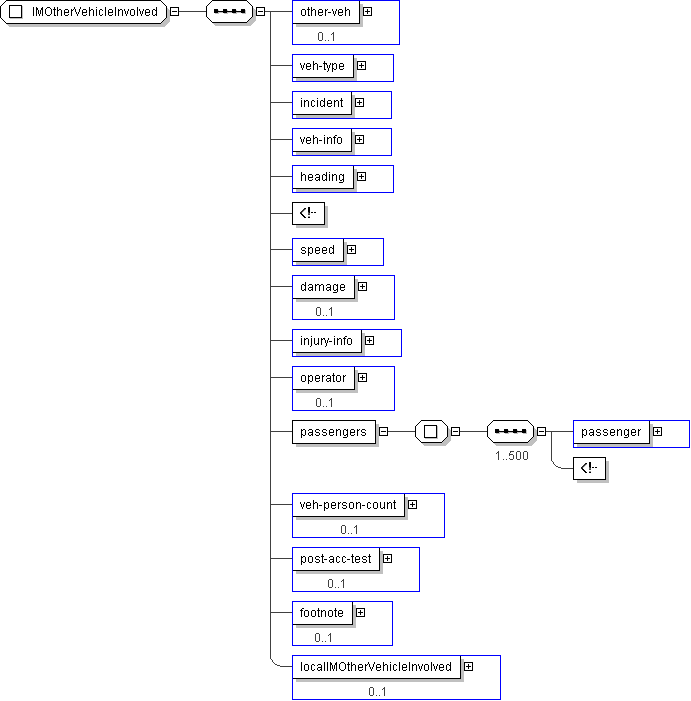

Name	IMOtherVehicleInvolved
Used by (from the same schema document)	Complex Type ImIncidentUpdate , Complex Type ImInitialIncidentReport , Complex Type IMInjury
Abstract	no

XML Instance Representation

<...>

<other-veh> IM-OtherVehicleInvolvedID </other-veh> [0..1]

<veh-type> IM-VehicleInvolvedType </veh-type> [1]

<incident> IMIncidentIden </incident> [1]

<veh-info> IMVehicleIDInformation </veh-info> [1]

<heading> lrms:Direction </heading> [1]

<speed> OB-J1587-VelocityVectorSpeed </speed> [1]

<damage> IM-VehicleDamage </damage> [0..1]

<injury-info> IMInjuryInfo </injury-info> [1]

<operator> IMPerson </operator> [0..1]

<passengers> [1]
Start Sequence [1..500]

<passenger> IMPerson </passenger> [1]

End Sequence
</passengers>

<veh-person-count> IM-VehicleOccupantCount </veh-person-count> [0..1]

<post-acc-test> IM-PostAccidentTest </post-acc-test> [0..1]

<footnote> CPT-Footnote </footnote> [0..1]

<localIMOtherVehicleInvolved> local:IMOtherVehicleInvolved </localIMOtherVehicleInvolved> [0..1]

</...>

Schema Component Representation

<xs:complexType name="IMOtherVehicleInvolved">

<xs:sequence>

<xs:element name="other-veh" type=" IM-OtherVehicleInvolvedID " minOccurs="0"/>

<xs:element name="veh-type" type=" IM-VehicleInvolvedType "/>

<xs:element name="incident" type=" IMIncidentIden "/>

<xs:element name="veh-info" type=" IMVehicleIDInformation "/>

<xs:element name="heading" type=" lrms:Direction "/>

<-- vehicle heading -->

<xs:element name="speed" type=" OB-J1587-VelocityVectorSpeed "/>

<xs:element name="damage" type=" IM-VehicleDamage " minOccurs="0"/>

<xs:element name="injury-info" type=" IMInjuryInfo "/>

<xs:element name="operator" type=" IMPerson " minOccurs="0"/>

<xs:element name="passengers">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="500">

<xs:element name="passenger" type=" IMPerson "/>

<-- passengers in the vehicle -->

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="veh-person-count" type=" IM-VehicleOccupantCount " minOccurs="0"/>

<xs:element name="post-acc-test" type=" IM-PostAccidentTest " minOccurs="0"/>

<xs:element name="footnote" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="localIMOtherVehicleInvolved" type=" local:IMOtherVehicleInvolved " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
