Documentation for ATIS-Draft-03-00-79

Complex Type: SchRunScheduleFile

[Table of contents]

Super-types: None
Sub-types: None
Name SchRunScheduleFile
Used by (from the same schema document) Element schRunScheduleFile
Abstract no
XML Instance Representation
<...>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<sched-runs> [1]
Start Sequence [1..10000]
<sched-run> SCHRunScheduleEntry </sched-run> [1]
End Sequence
</sched-runs>
<deleted-runs> [1]
Start Sequence [1..10000]
<deleted-run> SCHRunIden </deleted-run> [1]
End Sequence
</deleted-runs>
<localSchRunScheduleFile> local:SchRunScheduleFile </localSchRunScheduleFile> [0..1]
</...>

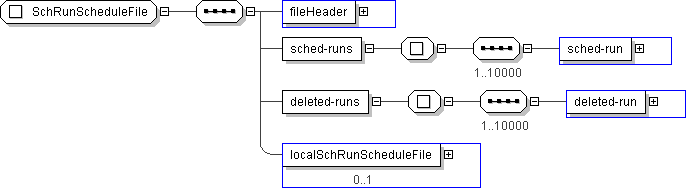

Diagram
h-956766127 h-876705053 h355204924 h-907453205
Schema Component Representation
<xs:complexType name="SchRunScheduleFile">
<xs:sequence>
<xs:element name="fileHeader" type=" CPTLoadFileHeader "/>
<xs:element name="sched-runs">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="sched-run" type=" SCHRunScheduleEntry "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="deleted-runs">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="deleted-run" type=" SCHRunIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="localSchRunScheduleFile" type=" local:SchRunScheduleFile " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
