Documentation for ATIS-Draft-03-00-79

Element: schRunScheduleFile

[Table of contents]

Name schRunScheduleFile
Type SchRunScheduleFile
Nillable no
Abstract no

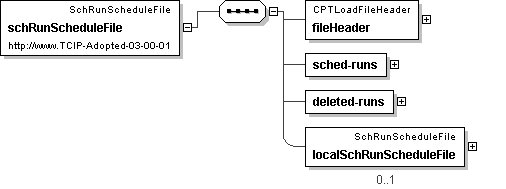

Logical Diagram
h-2078410676 h-9178687 h1851536607 h-1752736210
XML Instance Representation
<schRunScheduleFile>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<sched-runs> [1]
Start Sequence [1..10000]
<sched-run> SCHRunScheduleEntry </sched-run> [1]
End Sequence
</sched-runs>
<deleted-runs> [1]
Start Sequence [1..10000]
<deleted-run> SCHRunIden </deleted-run> [1]
End Sequence
</deleted-runs>
<localSchRunScheduleFile> local:SchRunScheduleFile </localSchRunScheduleFile> [0..1]
</schRunScheduleFile>

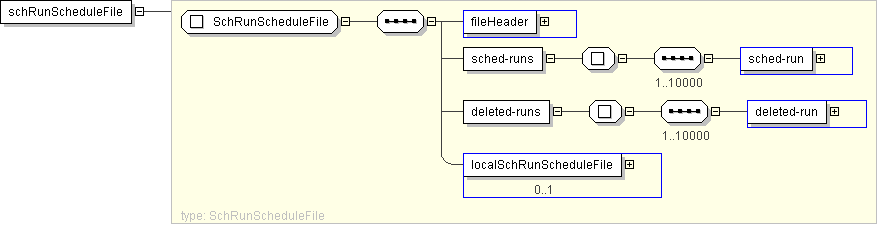

Diagram
h-956766127 h-876705053 h355204924 h-907453205
Schema Component Representation
<xs:element name="schRunScheduleFile" type=" SchRunScheduleFile "/>
