Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SpRouteGeoTraceSub
Used by (from the same schema document)	Element spRouteGeoTraceSub
Abstract	no

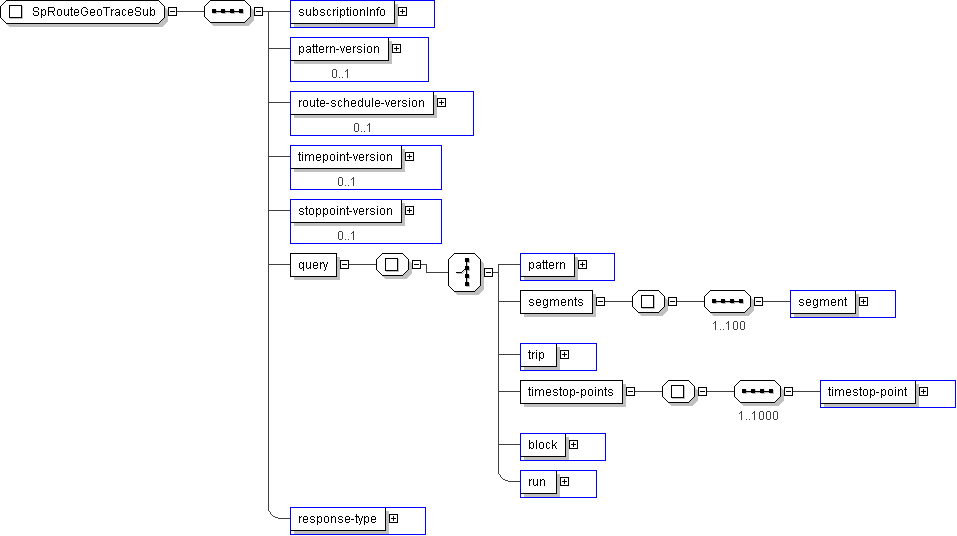

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<pattern-version> SCH-TimetableVersionID </pattern-version> [0..1]

<route-schedule-version> SCH-TimetableVersionID </route-schedule-version> [0..1]

<timepoint-version> SCH-TimetableVersionID </timepoint-version> [0..1]

<stoppoint-version> CPT-StoppointVersion </stoppoint-version> [0..1]

<query> [1]
Start Choice [1]

<pattern> SCHPatternIden </pattern> [1]

<segments> [1]
Start Sequence [1..100]

<segment> SCHPatternSegmentIden </segment> [1]

End Sequence
</segments>

<trip> SCHTripIden </trip> [1]

<timestop-points> [1]
Start Sequence [1..1000]

<timestop-point> SCHTimeStoppoint </timestop-point> [1]

End Sequence
</timestop-points>

<block> SCHBlockIden </block> [1]

<run> SCHRunIden </run> [1]

End Choice
</query>

<response-type> SP-GeoTraceResponseType </response-type> [1]

</...>

Schema Component Representation

<xs:complexType name="SpRouteGeoTraceSub">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="pattern-version" type=" SCH-TimetableVersionID " minOccurs="0"/>

<xs:element name="route-schedule-version" type=" SCH-TimetableVersionID " minOccurs="0"/>

<xs:element name="timepoint-version" type=" SCH-TimetableVersionID " minOccurs="0"/>

<xs:element name="stoppoint-version" type=" CPT-StoppointVersion " minOccurs="0"/>

<xs:element name="query">

<xs:complexType>

<xs:choice>

<xs:element name="pattern" type=" SCHPatternIden "/>

<xs:element name="segments">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="segment" type=" SCHPatternSegmentIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="trip" type=" SCHTripIden "/>

<xs:element name="timestop-points">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000">

<xs:element name="timestop-point" type=" SCHTimeStoppoint "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="block" type=" SCHBlockIden "/>

<xs:element name="run" type=" SCHRunIden "/>

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="response-type" type=" SP-GeoTraceResponseType "/>

</xs:sequence>

</xs:complexType>
