Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SP-GeoTraceResponseType
Used by (from the same schema document)	Complex Type SpRouteGeoTrace , Complex Type SpRouteGeoTraceSub
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 6 Locally defined type: Base XSD Type: string value comes from list: {'links'\|'tracepoints'\|'timepoints'\|'stoppoints'\|'driving directions'\|'walking directions'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	links (1) tracepoints (2) timepoints (3) stoppoints (4) driving directions (5) walking directions (6) -- 7-127 reserved -- 128-255 local use

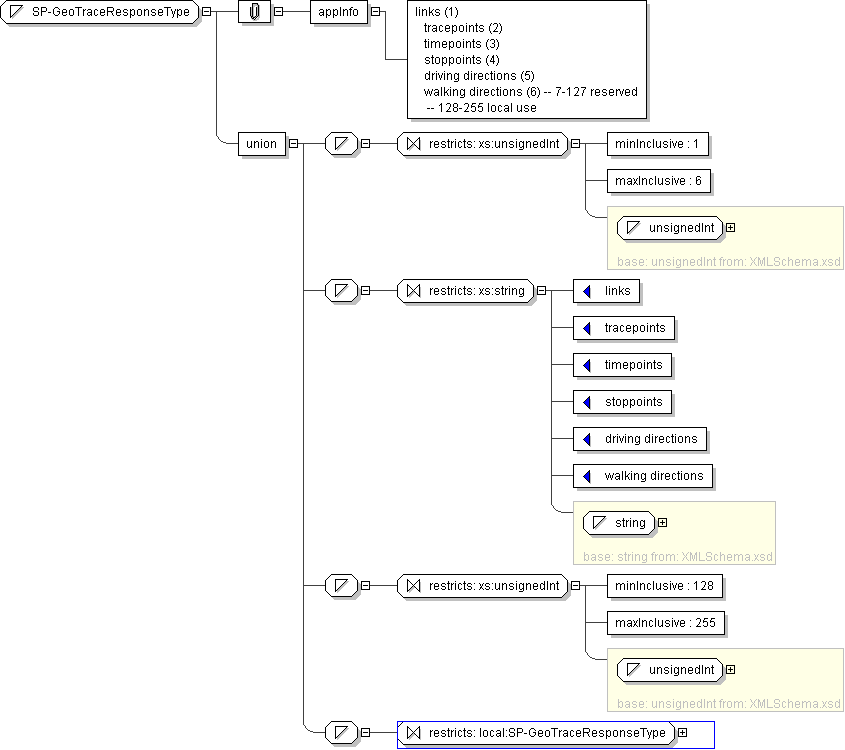

Schema Component Representation

<xs:simpleType name="SP-GeoTraceResponseType">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="6"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="links"/>

<xs:enumeration value="tracepoints"/>

<xs:enumeration value="timepoints"/>

<xs:enumeration value="stoppoints"/>

<xs:enumeration value="driving directions"/>

<xs:enumeration value="walking directions"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:SP-GeoTraceResponseType "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
