Documentation for ATIS-Draft-03-00-79

Element: spRouteGeoTraceSub

[Table of contents]

Name spRouteGeoTraceSub
Type SpRouteGeoTraceSub
Nillable no
Abstract no

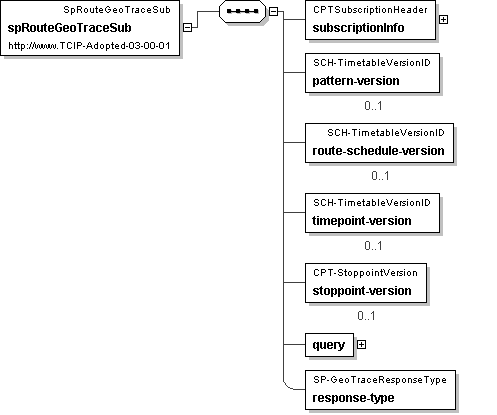

Logical Diagram
h-841091506 h-591237691
XML Instance Representation
<spRouteGeoTraceSub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<pattern-version> SCH-TimetableVersionID </pattern-version> [0..1]
<route-schedule-version> SCH-TimetableVersionID </route-schedule-version> [0..1]
<timepoint-version> SCH-TimetableVersionID </timepoint-version> [0..1]
<stoppoint-version> CPT-StoppointVersion </stoppoint-version> [0..1]
<query> [1]
Start Choice [1]
<pattern> SCHPatternIden </pattern> [1]
<segments> [1]
Start Sequence [1..100]
<segment> SCHPatternSegmentIden </segment> [1]
End Sequence
</segments>
<trip> SCHTripIden </trip> [1]
<timestop-points> [1]
Start Sequence [1..1000]
<timestop-point> SCHTimeStoppoint </timestop-point> [1]
End Sequence
</timestop-points>
<block> SCHBlockIden </block> [1]
<run> SCHRunIden </run> [1]
End Choice
</query>
<response-type> SP-GeoTraceResponseType </response-type> [1]
</spRouteGeoTraceSub>

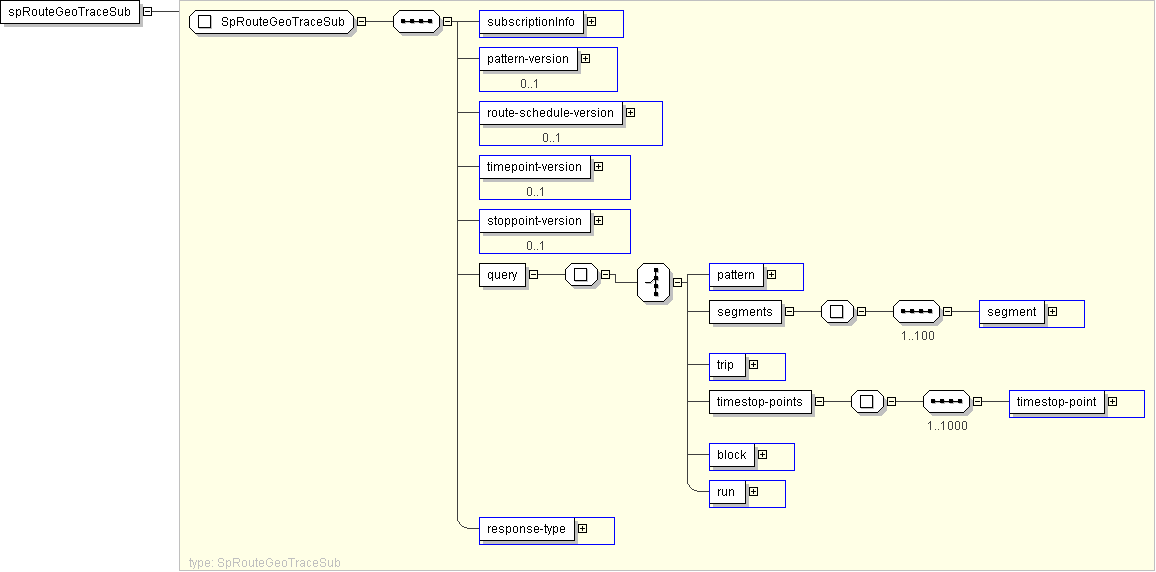

Diagram
h-527207252 h-337950068 h-337950068 h-337950068 h1258252725 h-1937713343 h122395130 h-1158373540 h-540658738 h-258889474 h355204924 h1706890554
Schema Component Representation
<xs:element name="spRouteGeoTraceSub" type=" SpRouteGeoTraceSub "/>
