Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

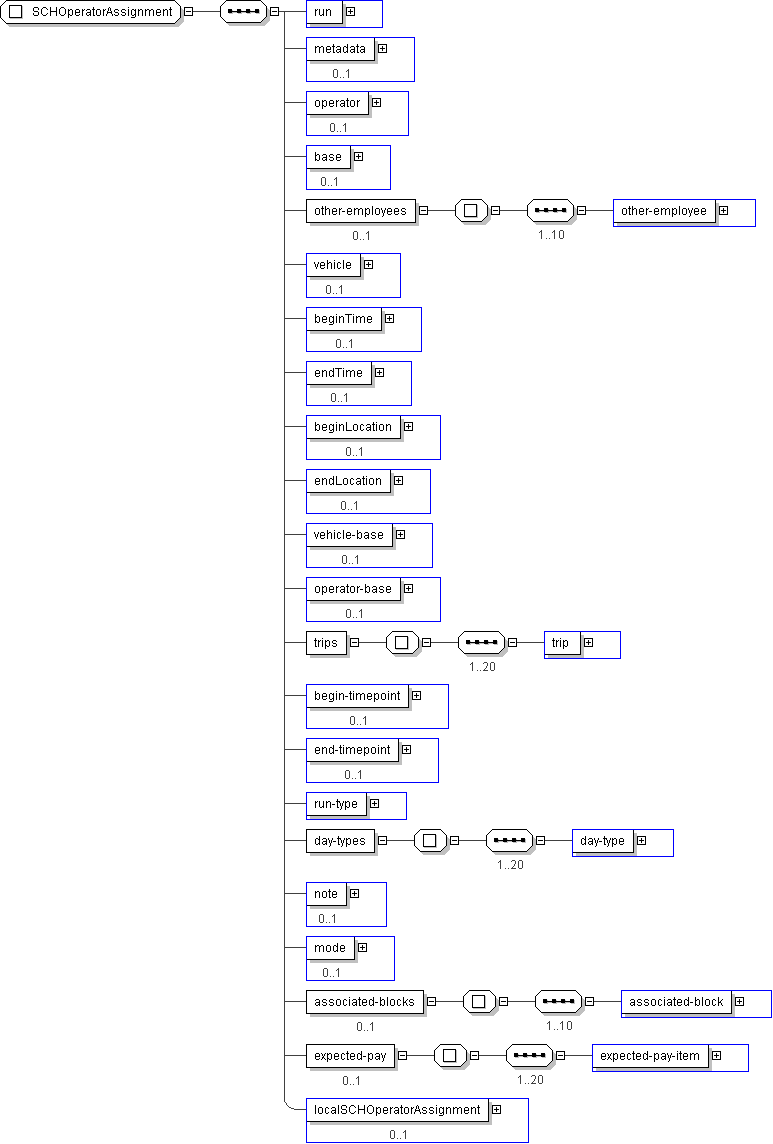

Name	SCHOperatorAssignment
Used by (from the same schema document)	Complex Type SchOperatorAssignmentFile , Complex Type SchOperatorAssignmentList , Complex Type SchPushOperatorAssignments
Abstract	no

XML Instance Representation

<...>

<run> SCHRunIden </run> [1]

<metadata> CPTRowMetaData </metadata> [0..1]

<operator> CPTOperatorIden </operator> [0..1]

<base> CPTOperatorBaseIden </base> [0..1]

<other-employees> [0..1]
Start Sequence [1..10]

<other-employee> CPTEmployeeIden </other-employee> [1]

End Sequence
</other-employees>

<vehicle> CPTVehicleIden </vehicle> [0..1]

<beginTime> CPT-DateTime </beginTime> [0..1]

<endTime> CPT-Time </endTime> [0..1]

<beginLocation> lrms:GeoLocation </beginLocation> [0..1]

<endLocation> lrms:GeoLocation </endLocation> [0..1]

<vehicle-base> CPTTransitFacilityIden </vehicle-base> [0..1]

<operator-base> CPTTransitFacilityIden </operator-base> [0..1]

<trips> [1]
Start Sequence [1..20]

<trip> SCHTripIden </trip> [1]

End Sequence
</trips>

<begin-timepoint> SCHTimepointIden </begin-timepoint> [0..1]

<end-timepoint> SCHTimepointIden </end-timepoint> [0..1]

<run-type> SCH-RunType </run-type> [1]

<day-types> [1]
Start Sequence [1..20]

<day-type> SCH-DayType </day-type> [1]

End Sequence
</day-types>

<note> SCHNoteIden </note> [0..1]

<mode> CPT-Mode </mode> [0..1]

<associated-blocks> [0..1]
Start Sequence [1..10]

<associated-block> SCHBlockIden </associated-block> [1]

End Sequence
</associated-blocks>

<expected-pay> [0..1]
Start Sequence [1..20]

<expected-pay-item> SCHOperatorPay </expected-pay-item> [1]

End Sequence
</expected-pay>

<localSCHOperatorAssignment> local:SCHOperatorAssignment </localSCHOperatorAssignment> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SCHOperatorAssignment">

<xs:sequence>

<xs:element name="run" type=" SCHRunIden "/>

<xs:element name="metadata" type=" CPTRowMetaData " minOccurs="0"/>

<xs:element name="operator" type=" CPTOperatorIden " minOccurs="0"/>

<xs:element name="base" type=" CPTOperatorBaseIden " minOccurs="0"/>

<xs:element name="other-employees" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="other-employee" type=" CPTEmployeeIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="vehicle" type=" CPTVehicleIden " minOccurs="0"/>

<xs:element name="beginTime" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="endTime" type=" CPT-Time " minOccurs="0"/>

<xs:element name="beginLocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="endLocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="vehicle-base" type=" CPTTransitFacilityIden " minOccurs="0"/>

<xs:element name="operator-base" type=" CPTTransitFacilityIden " minOccurs="0"/>

<xs:element name="trips">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="trip" type=" SCHTripIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="begin-timepoint" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="end-timepoint" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="run-type" type=" SCH-RunType "/>

<xs:element name="day-types">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="day-type" type=" SCH-DayType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="note" type=" SCHNoteIden " minOccurs="0"/>

<xs:element name="mode" type=" CPT-Mode " minOccurs="0"/>

<xs:element name="associated-blocks" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="associated-block" type=" SCHBlockIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="expected-pay" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="expected-pay-item" type=" SCHOperatorPay "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localSCHOperatorAssignment" type=" local:SCHOperatorAssignment " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
