Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

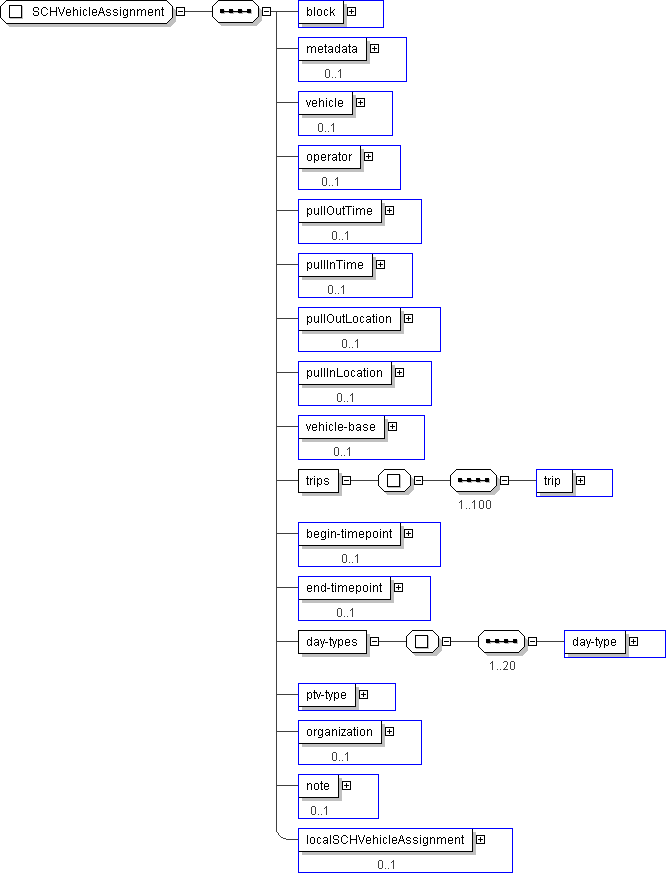

Name	SCHVehicleAssignment
Used by (from the same schema document)	Complex Type SchPushVehicleAssignments , Complex Type SchVehicleAssignmentFile , Complex Type SchVehicleAssignmentList
Abstract	no

XML Instance Representation

<...>

<block> SCHBlockIden </block> [1]

<metadata> CPTRowMetaData </metadata> [0..1]

<vehicle> CPTVehicleIden </vehicle> [0..1]

<operator> CPTOperatorIden </operator> [0..1]

<pullOutTime> SCH-Time </pullOutTime> [0..1]

<pullInTime> SCH-Time </pullInTime> [0..1]

<pullOutLocation> lrms:GeoLocation </pullOutLocation> [0..1]

<pullInLocation> lrms:GeoLocation </pullInLocation> [0..1]

<vehicle-base> CPTTransitFacilityIden </vehicle-base> [0..1]

<trips> [1]
Start Sequence [1..100]

<trip> SCHTripIden </trip> [1]

End Sequence
</trips>

<begin-timepoint> SCHTimepointIden </begin-timepoint> [0..1]

<end-timepoint> SCHTimepointIden </end-timepoint> [0..1]

<day-types> [1]
Start Sequence [1..20]

<day-type> SCH-DayType </day-type> [1]

End Sequence
</day-types>

<ptv-type> CPT-PTVehicleType </ptv-type> [1]

<organization> CPTOrganizationalUnitIden </organization> [0..1]

<note> SCHNoteIden </note> [0..1]

<localSCHVehicleAssignment> local:SCHVehicleAssignment </localSCHVehicleAssignment> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SCHVehicleAssignment">

<xs:sequence>

<xs:element name="block" type=" SCHBlockIden "/>

<xs:element name="metadata" type=" CPTRowMetaData " minOccurs="0"/>

<xs:element name="vehicle" type=" CPTVehicleIden " minOccurs="0"/>

<xs:element name="operator" type=" CPTOperatorIden " minOccurs="0"/>

<xs:element name="pullOutTime" type=" SCH-Time " minOccurs="0"/>

<xs:element name="pullInTime" type=" SCH-Time " minOccurs="0"/>

<xs:element name="pullOutLocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="pullInLocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="vehicle-base" type=" CPTTransitFacilityIden " minOccurs="0"/>

<xs:element name="trips">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="trip" type=" SCHTripIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="begin-timepoint" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="end-timepoint" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="day-types">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="day-type" type=" SCH-DayType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="ptv-type" type=" CPT-PTVehicleType "/>

<xs:element name="organization" type=" CPTOrganizationalUnitIden " minOccurs="0"/>

<xs:element name="note" type=" SCHNoteIden " minOccurs="0"/>

<xs:element name="localSCHVehicleAssignment" type=" local:SCHVehicleAssignment " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
