Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

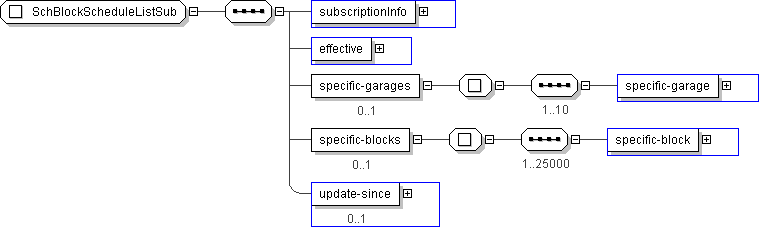

Name	SchBlockScheduleListSub
Used by (from the same schema document)	Element schBlockScheduleListSub
Abstract	no

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<effective> CPT-DateTime </effective> [1]

<specific-garages> [0..1]
Start Sequence [1..10]

<specific-garage> CPTTransitFacilityIden </specific-garage> [1]

End Sequence
</specific-garages>

<specific-blocks> [0..1]
Start Sequence [1..25000]

<specific-block> SCHBlockIden </specific-block> [1]

End Sequence
</specific-blocks>

<update-since> CPT-DateTime </update-since> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SchBlockScheduleListSub">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="effective" type=" CPT-DateTime "/>

<xs:element name="specific-garages" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="specific-garage" type=" CPTTransitFacilityIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="specific-blocks" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="25000">

<xs:element name="specific-block" type=" SCHBlockIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="update-since" type=" CPT-DateTime " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
