Documentation for ATIS-Draft-03-00-79

Element: schBlockScheduleListSub

[Table of contents]

Name schBlockScheduleListSub
Type SchBlockScheduleListSub
Nillable no
Abstract no

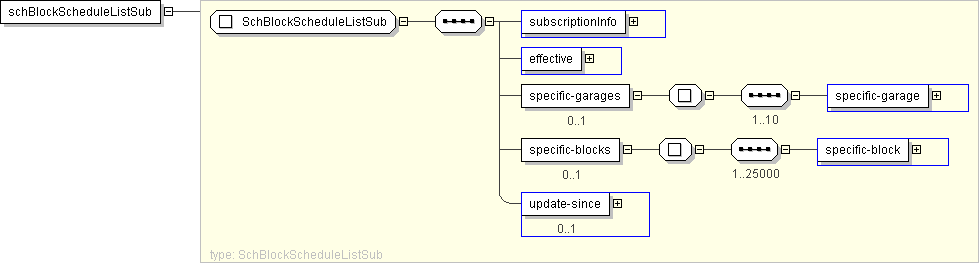

Logical Diagram
h-841091506 h622141300 h441184062
XML Instance Representation
<schBlockScheduleListSub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<effective> CPT-DateTime </effective> [1]
<specific-garages> [0..1]
Start Sequence [1..10]
<specific-garage> CPTTransitFacilityIden </specific-garage> [1]
End Sequence
</specific-garages>
<specific-blocks> [0..1]
Start Sequence [1..25000]
<specific-block> SCHBlockIden </specific-block> [1]
End Sequence
</specific-blocks>
<update-since> CPT-DateTime </update-since> [0..1]
</schBlockScheduleListSub>

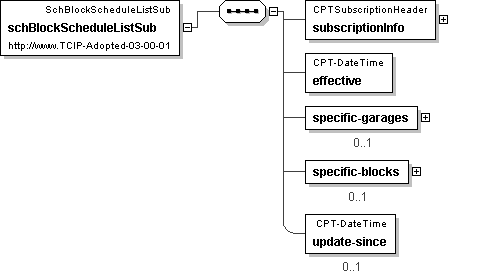

Diagram
h-527207252 h1272267302 h2133900120 h-258889474 h1272267302
Schema Component Representation
<xs:element name="schBlockScheduleListSub" type=" SchBlockScheduleListSub "/>
