Complex Type: SchBlockScheduleFile

[Table of contents]

Super-types: None
Sub-types: None
Name SchBlockScheduleFile
Used by (from the same schema document) Element schBlockScheduleFile
Abstract no
XML Instance Representation
<...>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<sched-blocks> [1]
Start Sequence [1..25000]
<sched-block> SCHBlockScheduleEntry </sched-block> [1]
End Sequence
</sched-blocks>
<deleted-blocks> [1]
Start Sequence [1..25000]
<deleted-block> SCHBlockIden </deleted-block> [1]
End Sequence
</deleted-blocks>
<localSchBlockScheduleFile> local:SchBlockScheduleFile </localSchBlockScheduleFile> [0..1]
</...>

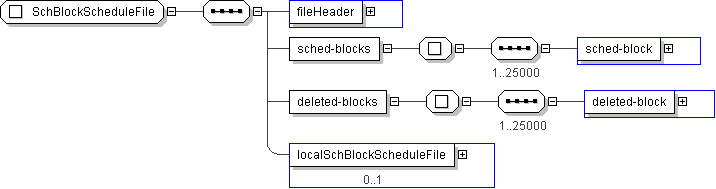

Diagram
h-956766127 h-1924220063 h-258889474 h-108845907
Schema Component Representation
<xs:complexType name="SchBlockScheduleFile">
<xs:sequence>
<xs:element name="fileHeader" type=" CPTLoadFileHeader "/>
<xs:element name="sched-blocks">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="25000">
<xs:element name="sched-block" type=" SCHBlockScheduleEntry "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="deleted-blocks">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="25000">
<xs:element name="deleted-block" type=" SCHBlockIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="localSchBlockScheduleFile" type=" local:SchBlockScheduleFile " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
