Element: schBlockScheduleFile

[Table of contents]

Name schBlockScheduleFile
Type SchBlockScheduleFile
Nillable no
Abstract no

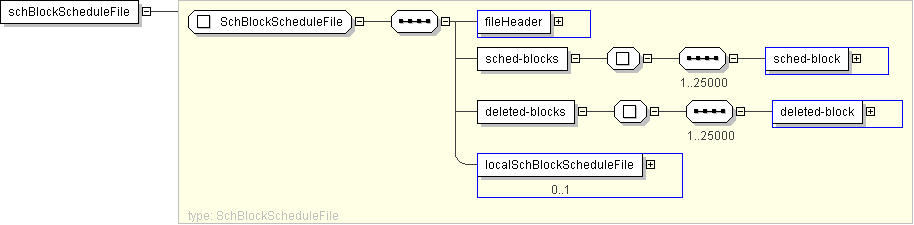

Logical Diagram
h-2078410676 h-697143873 h743858525 h-676994768
XML Instance Representation
<schBlockScheduleFile>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<sched-blocks> [1]
Start Sequence [1..25000]
<sched-block> SCHBlockScheduleEntry </sched-block> [1]
End Sequence
</sched-blocks>
<deleted-blocks> [1]
Start Sequence [1..25000]
<deleted-block> SCHBlockIden </deleted-block> [1]
End Sequence
</deleted-blocks>
<localSchBlockScheduleFile> local:SchBlockScheduleFile </localSchBlockScheduleFile> [0..1]
</schBlockScheduleFile>

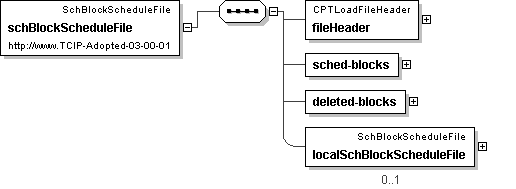

Diagram
h-956766127 h-1924220063 h-258889474 h-108845907
Schema Component Representation
<xs:element name="schBlockScheduleFile" type=" SchBlockScheduleFile "/>
