Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CcPTVAlarmLimits
Used by (from the same schema document)	Element ccPTVAlarmLimits
Abstract	no

XML Instance Representation

<...>

<fileHeader> CPTLoadFileHeader </fileHeader> [1]

<thresholds> [0..1]
Start Sequence [1..100]

<threshold> CCParameterThreshold </threshold> [1]

End Sequence
</thresholds>

<parameterLogRates> [0..1]
Start Sequence [1..100]

<parameterLogRate> CCParameterReportRequest </parameterLogRate> [1]

End Sequence
</parameterLogRates>

<offRouteLogRates> CCActivateRouteAdherence </offRouteLogRates> [1]

<offRouteReportRates> CCActivateRouteAdherence </offRouteReportRates> [0..1]

<offScheduleReportRates> CCActivateScheduleAdherence </offScheduleReportRates> [0..1]

<manualAlarms> [0..1]
Start Sequence [1..100]

<manualAlarm> CCManualAlarmDefinition </manualAlarm> [1]

End Sequence
</manualAlarms>

<enableCode> CPT-GenericCounter </enableCode> [0..1]

<disableCode> CPT-GenericCounter </disableCode> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CcPTVAlarmLimits">

<xs:sequence>

<xs:element name="fileHeader" type=" CPTLoadFileHeader "/>

<xs:element name="thresholds" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="threshold" type=" CCParameterThreshold "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="parameterLogRates" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="parameterLogRate" type=" CCParameterReportRequest "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="offRouteLogRates" type=" CCActivateRouteAdherence "/>

<xs:element name="offRouteReportRates" type=" CCActivateRouteAdherence " minOccurs="0"/>

<xs:element name="offScheduleReportRates" type=" CCActivateScheduleAdherence " minOccurs="0"/>

<xs:element name="manualAlarms" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="manualAlarm" type=" CCManualAlarmDefinition "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="enableCode" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="disableCode" type=" CPT-GenericCounter " minOccurs="0"/>

</xs:sequence>

</xs:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:

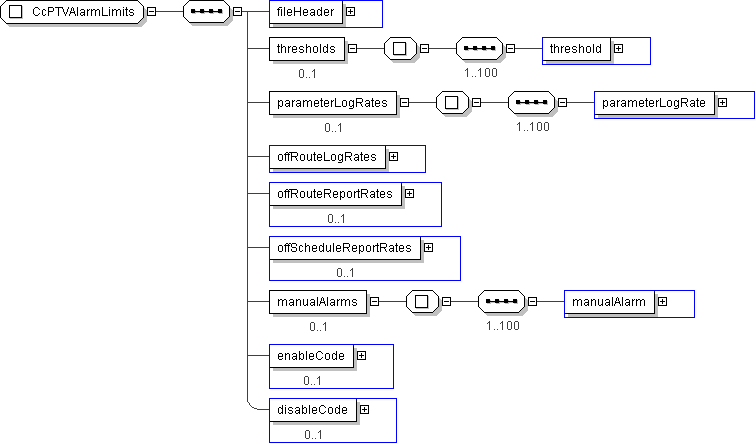

Complex Type: CcPTVAlarmLimits
