Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

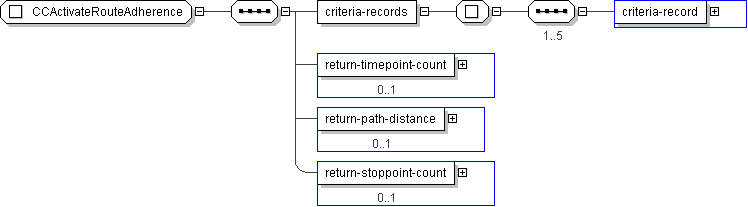

Name	CCActivateRouteAdherence
Used by (from the same schema document)	Complex Type CcPTVAdherenceSub , Complex Type CcPTVAlarmLimits , Complex Type CcPTVAlarmLimits
Abstract	no

XML Instance Representation

<...>

<criteria-records> [1]
Start Sequence [1..5]

<criteria-record> CCRouteAdherenceEntry </criteria-record> [1]

End Sequence
</criteria-records>

<return-timepoint-count> CPT-GenericCounter </return-timepoint-count> [0..1]

<return-path-distance> lrms:Distance </return-path-distance> [0..1]

<return-stoppoint-count> CPT-GenericCounter </return-stoppoint-count> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CCActivateRouteAdherence">

<xs:sequence>

<xs:element name="criteria-records">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="5">

<xs:element name="criteria-record" type=" CCRouteAdherenceEntry "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="return-timepoint-count" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="return-path-distance" type=" lrms:Distance " minOccurs="0"/>

<xs:element name="return-stoppoint-count" type=" CPT-GenericCounter " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
