Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

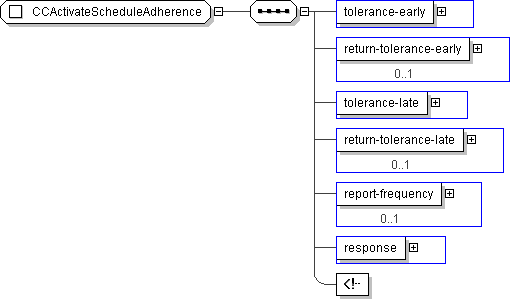

Name	CCActivateScheduleAdherence
Used by (from the same schema document)	Complex Type CcPTVAdherenceSub , Complex Type CcPTVAlarmLimits
Abstract	no

XML Instance Representation

<...>

<tolerance-early> CC-ScheduleToleranceEarly </tolerance-early> [1]

<return-tolerance-early> CC-ReturnToleranceEarly </return-tolerance-early> [0..1]

<tolerance-late> CC-ScheduleToleranceLate </tolerance-late> [1]

<return-tolerance-late> CC-ReturnToleranceLate </return-tolerance-late> [0..1]

<report-frequency> CC-ExceptionFrequencyReport </report-frequency> [0..1]

<response> CC-MsgResponse </response> [1]

</...>

Schema Component Representation

<xs:complexType name="CCActivateScheduleAdherence">

<xs:sequence>

<xs:element name="tolerance-early" type=" CC-ScheduleToleranceEarly "/>

<xs:element name="return-tolerance-early" type=" CC-ReturnToleranceEarly " minOccurs="0"/>

<xs:element name="tolerance-late" type=" CC-ScheduleToleranceLate "/>

<xs:element name="return-tolerance-late" type=" CC-ReturnToleranceLate " minOccurs="0"/>

<xs:element name="report-frequency" type=" CC-ExceptionFrequencyReport " minOccurs="0"/>

<xs:element name="response" type=" CC-MsgResponse "/>

<-- indicates whether initiation triggers a status/acknowledge response -->

</xs:sequence>

</xs:complexType>
