Documentation for ATIS-Draft-03-00-79

Element: ccPTVAlarmLimits

[Table of contents]

Name ccPTVAlarmLimits
Type CcPTVAlarmLimits
Nillable no
Abstract no

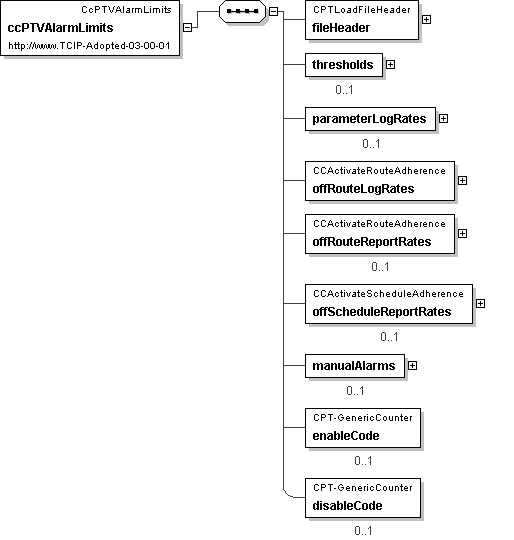

Logical Diagram
h-2078410676 h79030923 h-203602187 h-90731060 h438145666 h-965534116 h288209931
XML Instance Representation
<ccPTVAlarmLimits>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<thresholds> [0..1]
Start Sequence [1..100]
<threshold> CCParameterThreshold </threshold> [1]
End Sequence
</thresholds>
<parameterLogRates> [0..1]
Start Sequence [1..100]
<parameterLogRate> CCParameterReportRequest </parameterLogRate> [1]
End Sequence
</parameterLogRates>
<offRouteLogRates> CCActivateRouteAdherence </offRouteLogRates> [1]
<offRouteReportRates> CCActivateRouteAdherence </offRouteReportRates> [0..1]
<offScheduleReportRates> CCActivateScheduleAdherence </offScheduleReportRates> [0..1]
<manualAlarms> [0..1]
Start Sequence [1..100]
<manualAlarm> CCManualAlarmDefinition </manualAlarm> [1]
End Sequence
</manualAlarms>
<enableCode> CPT-GenericCounter </enableCode> [0..1]
<disableCode> CPT-GenericCounter </disableCode> [0..1]
</ccPTVAlarmLimits>

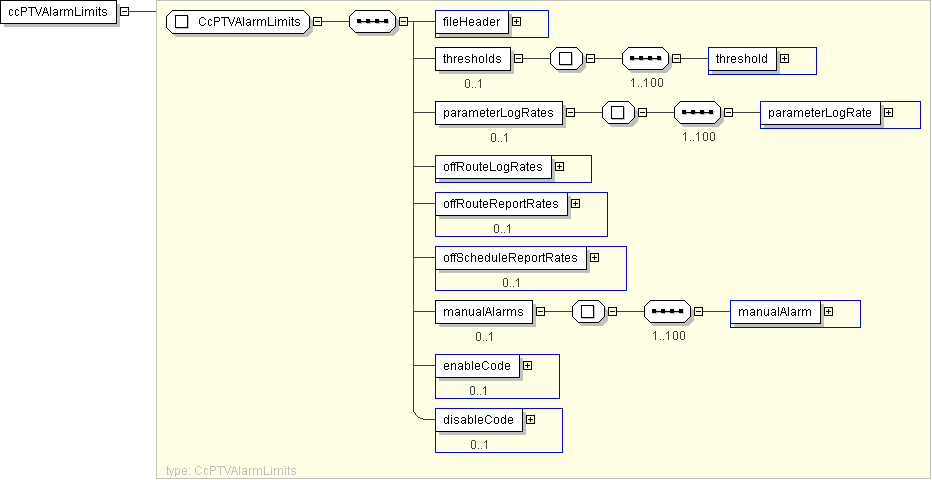

Diagram
h-956766127 h-1950810329 h-1452142729 h2104458060 h2104458060 h1980060750 h1436184409 h240005744 h240005744
Schema Component Representation
<xs:element name="ccPTVAlarmLimits" type=" CcPTVAlarmLimits "/>
