Documentation for ATIS-Draft-03-00-79

Complex Type: CCParameterThreshold

[Table of contents]

Super-types: None
Sub-types: None
Name CCParameterThreshold
Used by (from the same schema document) Complex Type CcPTVAlarmLimits , Complex Type CcPTVehicleAlarmSub
Abstract no
XML Instance Representation
<...>
<parameter> OB-PID </parameter> [1]
<metadata> CPTRowMetaData </metadata> [0..1]
<hi-value-alarm> OB-Parameter </hi-value-alarm> [1]
<hi-value-recover> OB-Parameter </hi-value-recover> [1]
<lo-value-alarm> OB-Parameter </lo-value-alarm> [1]
<lo-value-recover> OB-Parameter </lo-value-recover> [1]
<source-device> OB-MID </source-device> [0..1]
</...>

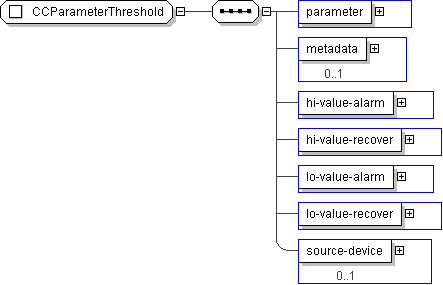

Diagram
h-199931114 h1503432423 h-1179992844 h-1179992844 h-1179992844 h-1179992844 h-199933997
Schema Component Representation
<xs:complexType name="CCParameterThreshold">
<xs:sequence>
<xs:element name="parameter" type=" OB-PID "/>
<xs:element name="metadata" type=" CPTRowMetaData " minOccurs="0"/>
<xs:element name="hi-value-alarm" type=" OB-Parameter "/>
<xs:element name="hi-value-recover" type=" OB-Parameter "/>
<xs:element name="lo-value-alarm" type=" OB-Parameter "/>
<xs:element name="lo-value-recover" type=" OB-Parameter "/>
<xs:element name="source-device" type=" OB-MID " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
