Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SchTimepointsFile
Used by (from the same schema document)	Element schTimepointsFile
Abstract	no

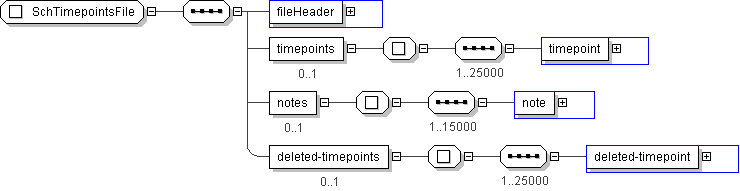

XML Instance Representation

<...>

<fileHeader> CPTLoadFileHeader </fileHeader> [1]

<timepoints> [0..1]
Start Sequence [1..25000]

<timepoint> SCHTimepointInfo </timepoint> [1]

End Sequence
</timepoints>

<notes> [0..1]
Start Sequence [1..15000]

<note> SCHNoteInfo </note> [1]

End Sequence
</notes>

<deleted-timepoints> [0..1]
Start Sequence [1..25000]

<deleted-timepoint> SCHTimepointIden </deleted-timepoint> [1]

End Sequence
</deleted-timepoints>

</...>

Schema Component Representation

<xs:complexType name="SchTimepointsFile">

<xs:sequence>

<xs:element name="fileHeader" type=" CPTLoadFileHeader "/>

<xs:element name="timepoints" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="25000">

<xs:element name="timepoint" type=" SCHTimepointInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="notes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="15000">

<xs:element name="note" type=" SCHNoteInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="deleted-timepoints" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="25000">

<xs:element name="deleted-timepoint" type=" SCHTimepointIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
