Documentation for ATIS-Draft-03-00-79

Element: schTimepointsFile

[Table of contents]

Name schTimepointsFile
Type SchTimepointsFile
Nillable no
Abstract no

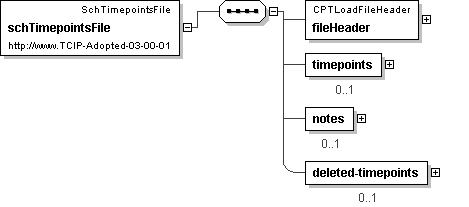

Logical Diagram
h-2078410676 h-1932139757 h-594172994 h-2142997945
XML Instance Representation
<schTimepointsFile>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<timepoints> [0..1]
Start Sequence [1..25000]
<timepoint> SCHTimepointInfo </timepoint> [1]
End Sequence
</timepoints>
<notes> [0..1]
Start Sequence [1..15000]
<note> SCHNoteInfo </note> [1]
End Sequence
</notes>
<deleted-timepoints> [0..1]
Start Sequence [1..25000]
<deleted-timepoint> SCHTimepointIden </deleted-timepoint> [1]
End Sequence
</deleted-timepoints>
</schTimepointsFile>

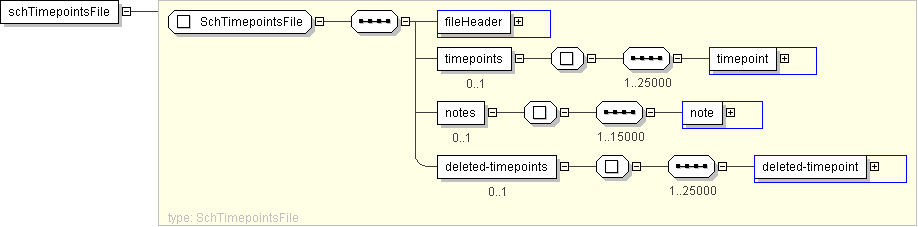

Diagram
h-956766127 h1668873086 h-1088073133 h1668863444
Schema Component Representation
<xs:element name="schTimepointsFile" type=" SchTimepointsFile "/>
