Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

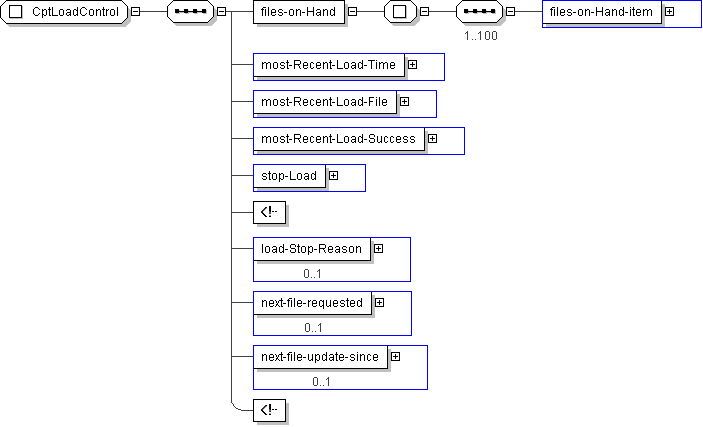

Name	CptLoadControl
Used by (from the same schema document)	Element cptLoadControl
Abstract	no

XML Instance Representation

<...>

<files-on-Hand> [1]
Start Sequence [1..100]

<files-on-Hand-item> CPTLoadFileHeader </files-on-Hand-item> [1]

End Sequence
</files-on-Hand>

<most-Recent-Load-Time> CPT-DateTime </most-Recent-Load-Time> [1]

<most-Recent-Load-File> CPTLoadFileHeader </most-Recent-Load-File> [1]

<most-Recent-Load-Success> CPT-Boolean </most-Recent-Load-Success> [1]

<stop-Load> CPT-Boolean </stop-Load> [1]

<load-Stop-Reason> CPT-LoadStopReason </load-Stop-Reason> [0..1]

<next-file-requested> CPTLoadFileHeader </next-file-requested> [0..1]

<next-file-update-since> CPT-DateTime </next-file-update-since> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CptLoadControl">

<xs:sequence>

<xs:element name="files-on-Hand">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="files-on-Hand-item" type=" CPTLoadFileHeader "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="most-Recent-Load-Time" type=" CPT-DateTime "/>

<xs:element name="most-Recent-Load-File" type=" CPTLoadFileHeader "/>

<xs:element name="most-Recent-Load-Success" type=" CPT-Boolean "/>

<xs:element name="stop-Load" type=" CPT-Boolean "/>

<-- set to False if load is to continue, -->

<xs:element name="load-Stop-Reason" type=" CPT-LoadStopReason " minOccurs="0"/>

<xs:element name="next-file-requested" type=" CPTLoadFileHeader " minOccurs="0"/>

<xs:element name="next-file-update-since" type=" CPT-DateTime " minOccurs="0"/>

<-- presence of next-file-update-since indicates the next file should be updates since the indicated date/time only, not a complete file load -->

</xs:sequence>

</xs:complexType>
