Documentation for ATIS-Draft-03-00-79

Element: cptLoadControl

[Table of contents]

Name cptLoadControl
Type CptLoadControl
Nillable no
Abstract no

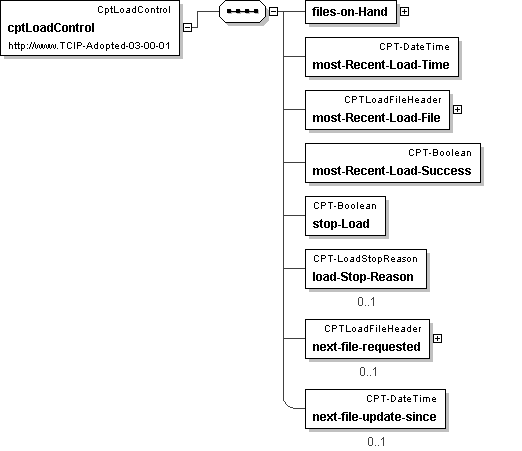

Logical Diagram
h-1134601628 h1508383032 h1030002868
XML Instance Representation
<cptLoadControl>
<files-on-Hand> [1]
Start Sequence [1..100]
<files-on-Hand-item> CPTLoadFileHeader </files-on-Hand-item> [1]
End Sequence
</files-on-Hand>
<most-Recent-Load-Time> CPT-DateTime </most-Recent-Load-Time> [1]
<most-Recent-Load-File> CPTLoadFileHeader </most-Recent-Load-File> [1]
<most-Recent-Load-Success> CPT-Boolean </most-Recent-Load-Success> [1]
<stop-Load> CPT-Boolean </stop-Load> [1]
<load-Stop-Reason> CPT-LoadStopReason </load-Stop-Reason> [0..1]
<next-file-requested> CPTLoadFileHeader </next-file-requested> [0..1]
<next-file-update-since> CPT-DateTime </next-file-update-since> [0..1]
</cptLoadControl>

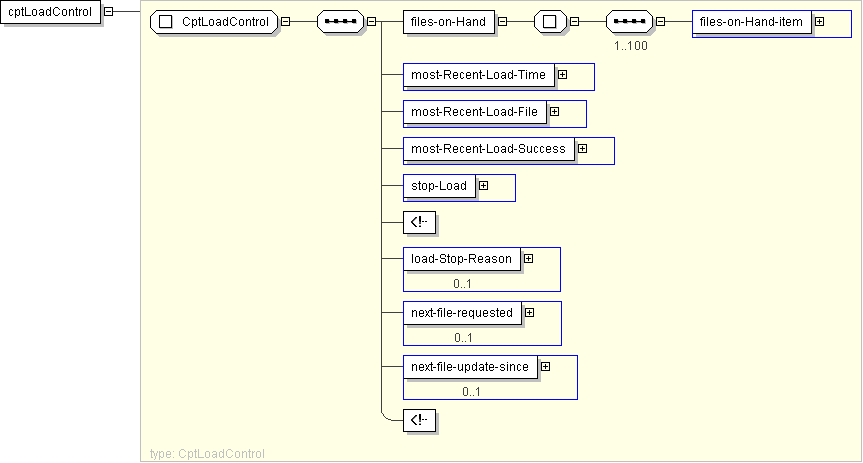

Diagram
h-956766127 h1272267302 h-956766127 h325016637 h325016637 h-1836714825 h-956766127 h1272267302
Schema Component Representation
<xs:element name="cptLoadControl" type=" CptLoadControl "/>
