Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

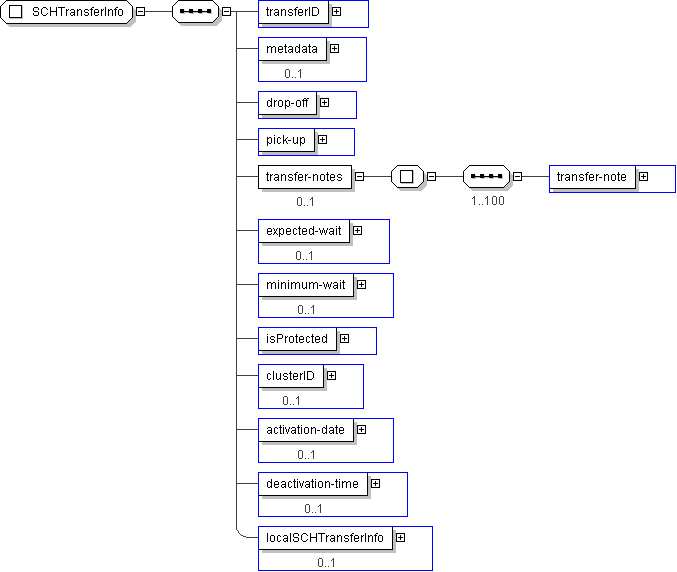

Name	SCHTransferInfo
Used by (from the same schema document)	Complex Type SchPushRouteSchedule , Complex Type SchRouteSchedule , Complex Type SchRouteScheduleFile
Abstract	no

XML Instance Representation

<...>

<transferID> SCH-TransferID </transferID> [1]

<metadata> CPTRowMetaData </metadata> [0..1]

<drop-off> SCHServiceAtStop </drop-off> [1]

<pick-up> SCHServiceAtStop </pick-up> [1]

<transfer-notes> [0..1]
Start Sequence [1..100]

<transfer-note> SCHNoteIden </transfer-note> [1]

End Sequence
</transfer-notes>

<expected-wait> CPT-Duration </expected-wait> [0..1]

<minimum-wait> CPT-Duration </minimum-wait> [0..1]

<isProtected> CPT-Boolean </isProtected> [1]

<clusterID> CPTTransferClusterIden </clusterID> [0..1]

<activation-date> CPT-Date </activation-date> [0..1]

<deactivation-time> CPT-Time </deactivation-time> [0..1]

<localSCHTransferInfo> local:SCHTransferInfo </localSCHTransferInfo> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SCHTransferInfo">

<xs:sequence>

<xs:element name="transferID" type=" SCH-TransferID "/>

<xs:element name="metadata" type=" CPTRowMetaData " minOccurs="0"/>

<xs:element name="drop-off" type=" SCHServiceAtStop "/>

<xs:element name="pick-up" type=" SCHServiceAtStop "/>

<xs:element name="transfer-notes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="transfer-note" type=" SCHNoteIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="expected-wait" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="minimum-wait" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="isProtected" type=" CPT-Boolean "/>

<xs:element name="clusterID" type=" CPTTransferClusterIden " minOccurs="0"/>

<xs:element name="activation-date" type=" CPT-Date " minOccurs="0"/>

<xs:element name="deactivation-time" type=" CPT-Time " minOccurs="0"/>

<xs:element name="localSCHTransferInfo" type=" local:SCHTransferInfo " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
