Simple Type: SCH-ActivationType

[Table of contents]

Super-types: None
Sub-types: None
Name SCH-ActivationType
Used by (from the same schema document) Complex Type SCHEvent
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 1 <= value <= 13
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'annTrigger'|'routeAdhOverride'|'signChange'|'msgTrigger'|'fareZone'|'radioZone'|'reliefTrigger'|'beginLayover'|'endLayover'|'beginTrip'|'endTrip'|'beginDeadhead'|'endDeadhead'}
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 128 <= value <= 255
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'insert-local-values-here'}
Application Data annTrigger (1) -- announcement trigger routeAdhOverride (2) -- route adherence override signChange (3) -- sign change msgTrigger (4) -- driver message trigger/paddle (relief point) fareZone (5) -- fare zone radioZone (6) -- radio zone reliefTrigger (7) -- relief trigger beginLayover (8) -- Begin Layover endLayover (9) -- End Layover beginTrip (10) -- Begin Trip endTrip (11) -- End Trip beginDeadhead (12) -- Begin Deadhead endDeadhead (13) -- End Deadhead routeAdhOverrideEnd (14) , -- 15-127 reserved -- 128-255 local use

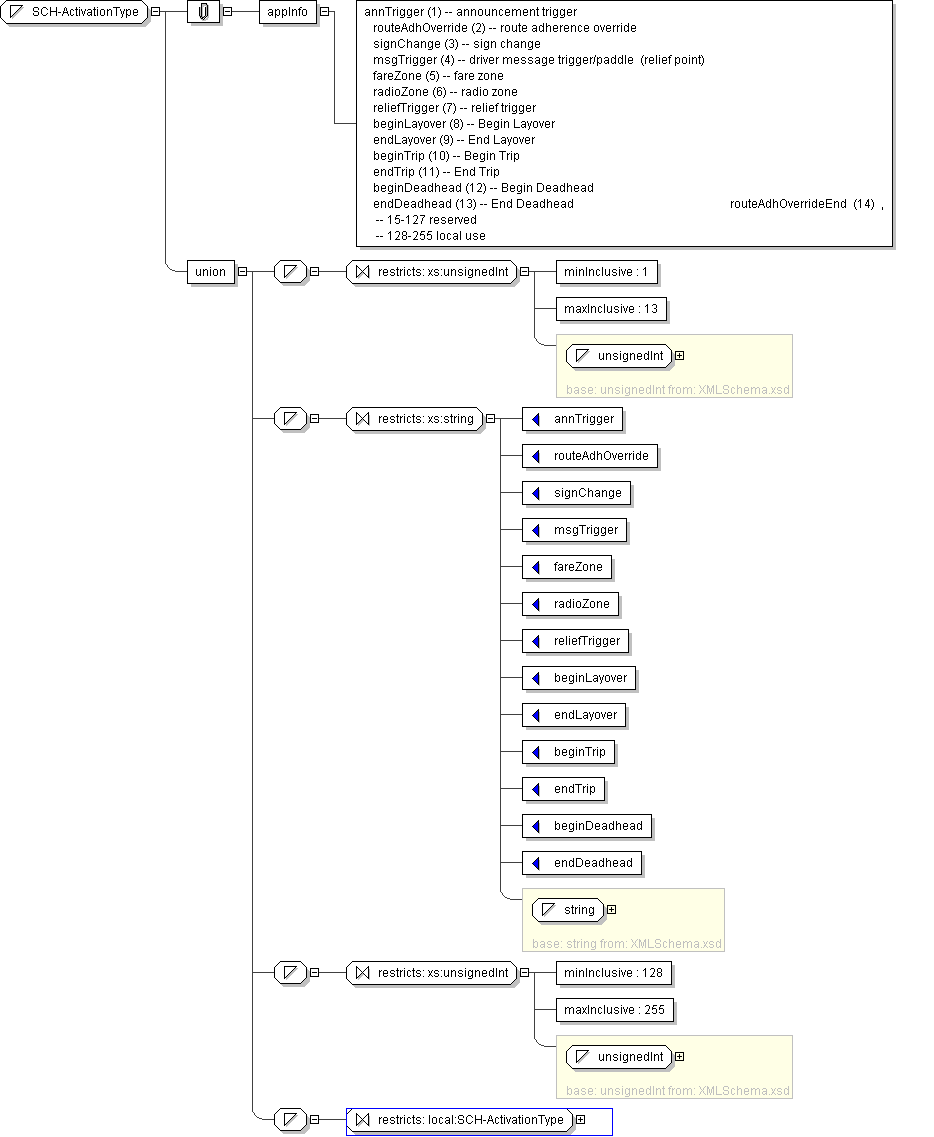

Diagram
h-198296278
Schema Component Representation
<xs:simpleType name="SCH-ActivationType">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="1"/>
<xs:maxInclusive value="13"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="annTrigger"/>
<xs:enumeration value="routeAdhOverride"/>
<xs:enumeration value="signChange"/>
<xs:enumeration value="msgTrigger"/>
<xs:enumeration value="fareZone"/>
<xs:enumeration value="radioZone"/>
<xs:enumeration value="reliefTrigger"/>
<xs:enumeration value="beginLayover"/>
<xs:enumeration value="endLayover"/>
<xs:enumeration value="beginTrip"/>
<xs:enumeration value="endTrip"/>
<xs:enumeration value="beginDeadhead"/>
<xs:enumeration value="endDeadhead"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="128"/>
<xs:maxInclusive value="255"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" local:SCH-ActivationType "/>
</xs:simpleType>
</xs:union>
</xs:simpleType>
