Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SCHRunningTimeEntry
Used by (from the same schema document)	Complex Type SchPushRunningTimes , Complex Type SchRunningTimeList , Complex Type SCHActualRunningTimeData
Abstract	no

XML Instance Representation

<...>

<period-name> SCH-RunningTimePeriodName </period-name> [0..1]

<service-types> [0..1]
Start Sequence [1..10]

<service-type> SCH-ServiceType </service-type> [1]

End Sequence
</service-types>

<earliest-time> SCH-Time </earliest-time> [0..1]

<latest-time> SCH-Time </latest-time> [0..1]

<day-types> [0..1]
Start Sequence [1..10]

<day-type> SCH-DayType </day-type> [1]

End Sequence
</day-types>

<stoppointA> CPTStoppointIden </stoppointA> [0..1]

<stoppointB> CPTStoppointIden </stoppointB> [0..1]

<timepointA> SCHTimepointIden </timepointA> [0..1]

<timepointB> SCHTimepointIden </timepointB> [0..1]

<pattern> SCHPatternIden </pattern> [0..1]

<pattern-segment> SCHPatternSegmentIden </pattern-segment> [0..1]

<running-time> CPT-Duration </running-time> [1]

<waiting-times> [0..1]
Start Sequence [1..20]

<waiting-time> SCHWaitingTime </waiting-time> [1]

End Sequence
</waiting-times>

<localSCHRunningTimeEntry> local:SCHRunningTimeEntry </localSCHRunningTimeEntry> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SCHRunningTimeEntry">

<xs:sequence>

<xs:element name="period-name" type=" SCH-RunningTimePeriodName " minOccurs="0"/>

<xs:element name="service-types" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="service-type" type=" SCH-ServiceType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="earliest-time" type=" SCH-Time " minOccurs="0"/>

<xs:element name="latest-time" type=" SCH-Time " minOccurs="0"/>

<xs:element name="day-types" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="day-type" type=" SCH-DayType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="stoppointA" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="stoppointB" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="timepointA" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="timepointB" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="pattern" type=" SCHPatternIden " minOccurs="0"/>

<xs:element name="pattern-segment" type=" SCHPatternSegmentIden " minOccurs="0"/>

<xs:element name="running-time" type=" CPT-Duration "/>

<xs:element name="waiting-times" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="waiting-time" type=" SCHWaitingTime "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localSCHRunningTimeEntry" type=" local:SCHRunningTimeEntry " minOccurs="0"/>

</xs:sequence>

</xs:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:

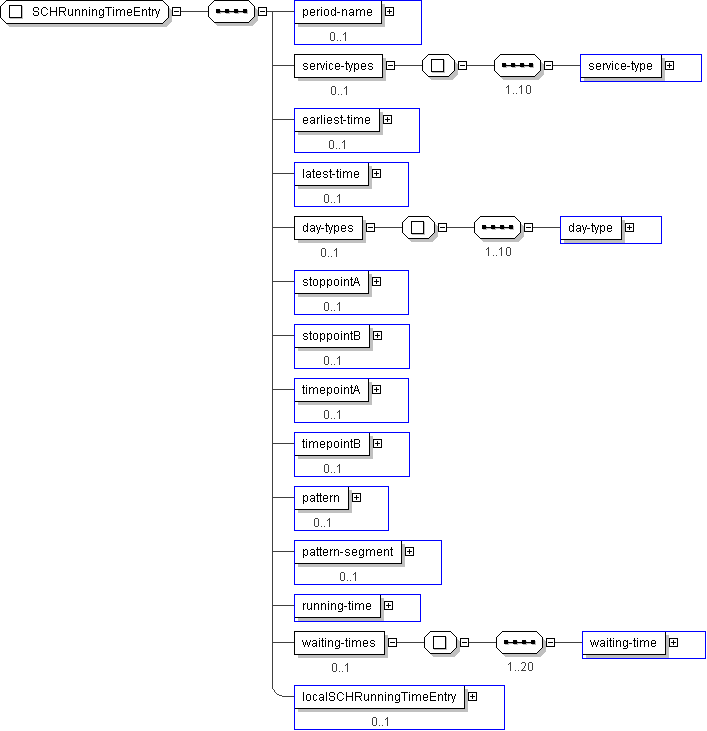

Complex Type: SCHRunningTimeEntry
