Documentation for ATIS-Draft-03-00-79

Complex Type: SchActualRunningTimes

[Table of contents]

Super-types: None
Sub-types: None
Name SchActualRunningTimes
Used by (from the same schema document) Element schActualRunningTimes
Abstract no
XML Instance Representation
<...>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<earliest> CPT-DateTime </earliest> [0..1]
<latest> CPT-DateTime </latest> [0..1]
<routes> [0..1]
Start Sequence [1..1000]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<patterns> [0..1]
Start Sequence [1..100]
<pattern> SCHPatternIden </pattern> [1]
End Sequence
</patterns>
<timepoints> [0..1]
Start Sequence [1..1000]
<timepoint> SCHTimepointIden </timepoint> [1]
End Sequence
</timepoints>
<trips> [0..1]
Start Sequence [1..1000]
<trip> SCHTripIden </trip> [1]
End Sequence
</trips>
<records> [0..1]
Start Sequence [1..100000]
<record> SCHActualRunningTimeData </record> [1]
End Sequence
</records>
</...>

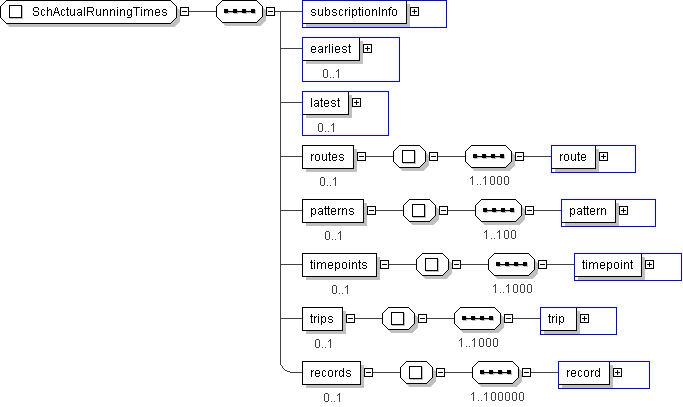

Diagram
h-527207252 h1272267302 h1272267302 h-963684166 h-1937713343 h1668863444 h-1158373540 h-358955051
Schema Component Representation
<xs:complexType name="SchActualRunningTimes">
<xs:sequence>
<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>
<xs:element name="earliest" type=" CPT-DateTime " minOccurs="0"/>
<xs:element name="latest" type=" CPT-DateTime " minOccurs="0"/>
<xs:element name="routes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="1000">
<xs:element name="route" type=" SCHRouteIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="patterns" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="pattern" type=" SCHPatternIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="timepoints" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="1000">
<xs:element name="timepoint" type=" SCHTimepointIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="trips" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="1000">
<xs:element name="trip" type=" SCHTripIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="records" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100000">
<xs:element name="record" type=" SCHActualRunningTimeData "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
