Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

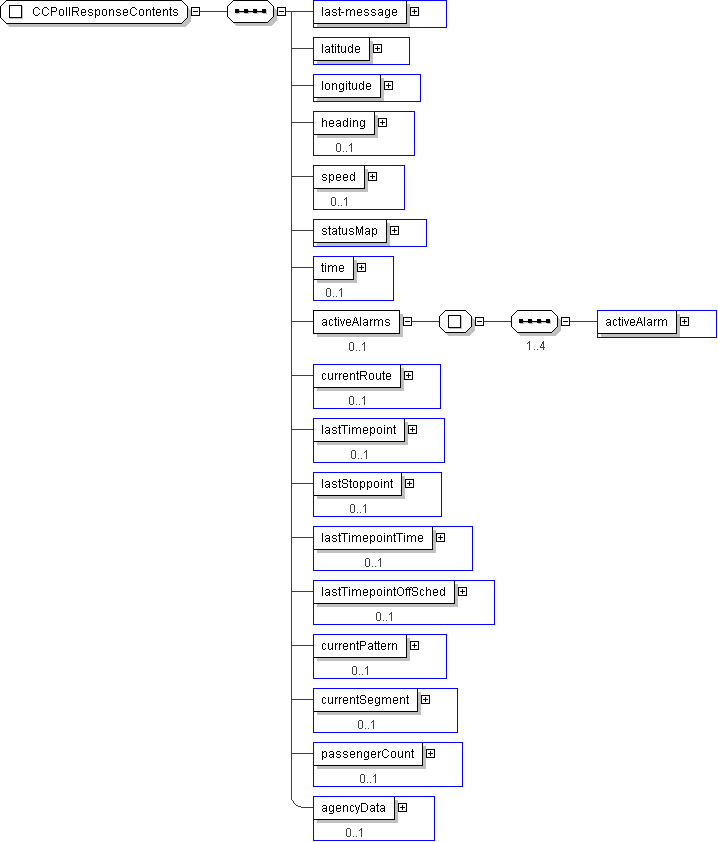

Name	CCPollResponseContents
Used by (from the same schema document)	Complex Type CcPollResults
Abstract	no

XML Instance Representation

<...>

<last-message> CC-MsgCounter </last-message> [1]

<latitude> lrms:Latitude </latitude> [1]

<longitude> lrms:Longitude </longitude> [1]

<heading> SP-AngularDirection </heading> [0..1]

<speed> OB-J1587-VelocityVectorSpeed </speed> [0..1]

<statusMap> CC-PollResponseStatus </statusMap> [1]

<time> CPT-DateTime </time> [0..1]

<activeAlarms> [0..1]
Start Sequence [1..4]

<activeAlarm> CCAlarm </activeAlarm> [1]

End Sequence
</activeAlarms>

<currentRoute> SCHRouteIden </currentRoute> [0..1]

<lastTimepoint> SCHTimepointIden </lastTimepoint> [0..1]

<lastStoppoint> CPTStoppointIden </lastStoppoint> [0..1]

<lastTimepointTime> SCH-Time </lastTimepointTime> [0..1]

<lastTimepointOffSched> CPT-Duration </lastTimepointOffSched> [0..1]

<currentPattern> SCHPatternIden </currentPattern> [0..1]

<currentSegment> SCHPatternSegmentIden </currentSegment> [0..1]

<passengerCount> OB-J1587-PassengerCounterPatronCount </passengerCount> [0..1]

<agencyData> CC-AgencyData </agencyData> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CCPollResponseContents">

<xs:sequence>

<xs:element name="last-message" type=" CC-MsgCounter "/>

<xs:element name="latitude" type=" lrms:Latitude "/>

<xs:element name="longitude" type=" lrms:Longitude "/>

<xs:element name="heading" type=" SP-AngularDirection " minOccurs="0"/>

<xs:element name="speed" type=" OB-J1587-VelocityVectorSpeed " minOccurs="0"/>

<xs:element name="statusMap" type=" CC-PollResponseStatus "/>

<xs:element name="time" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="activeAlarms" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="4">

<xs:element name="activeAlarm" type=" CCAlarm "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="currentRoute" type=" SCHRouteIden " minOccurs="0"/>

<xs:element name="lastTimepoint" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="lastStoppoint" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="lastTimepointTime" type=" SCH-Time " minOccurs="0"/>

<xs:element name="lastTimepointOffSched" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="currentPattern" type=" SCHPatternIden " minOccurs="0"/>

<xs:element name="currentSegment" type=" SCHPatternSegmentIden " minOccurs="0"/>

<xs:element name="passengerCount" type=" OB-J1587-PassengerCounterPatronCount " minOccurs="0"/>

<xs:element name="agencyData" type=" CC-AgencyData " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
