Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CCAlarm
Used by (from the same schema document)	Complex Type CcPTVehicleAlarm , Complex Type CCPollResponseContents , Complex Type CCPTVAlarm
Abstract	no

XML Instance Representation

<...>

<parameter-id> OB-PID </parameter-id> [1]

<recovered> CPT-Boolean </recovered> [1]

<value> OB-Parameter </value> [1]

<loc-lat> lrms:Latitude </loc-lat> [0..1]

<loc-lon> lrms:Longitude </loc-lon> [0..1]

<loc-dir> lrms:Angle </loc-dir> [0..1]

<loc-spd> OB-J1587-VelocityVectorSpeed </loc-spd> [0..1]

<time> CPT-DateTime </time> [1]

<other-alarms> [0..1]
Start Sequence [1..5]

<other-alarm> CC-AlarmCode </other-alarm> [1]

End Sequence
</other-alarms>

<localCCAlarm> local:CCAlarm </localCCAlarm> [0..1]

</...>

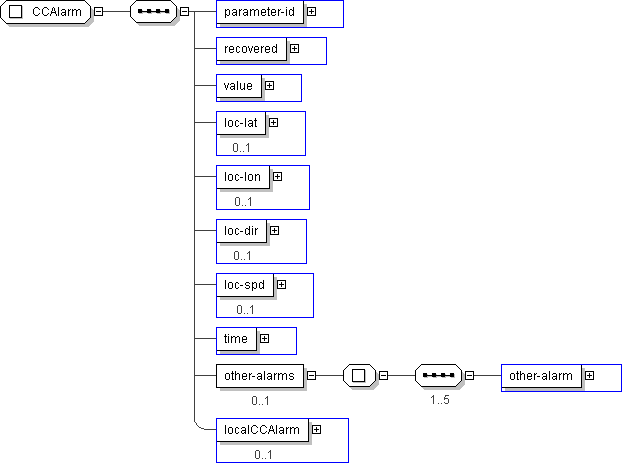

Schema Component Representation

<xs:complexType name="CCAlarm">

<xs:sequence>

<xs:element name="parameter-id" type=" OB-PID "/>

<xs:element name="recovered" type=" CPT-Boolean "/>

<xs:element name="value" type=" OB-Parameter "/>

<xs:element name="loc-lat" type=" lrms:Latitude " minOccurs="0"/>

<xs:element name="loc-lon" type=" lrms:Longitude " minOccurs="0"/>

<xs:element name="loc-dir" type=" lrms:Angle " minOccurs="0"/>

<xs:element name="loc-spd" type=" OB-J1587-VelocityVectorSpeed " minOccurs="0"/>

<xs:element name="time" type=" CPT-DateTime "/>

<xs:element name="other-alarms" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="5">

<xs:element name="other-alarm" type=" CC-AlarmCode "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localCCAlarm" type=" local:CCAlarm " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
