Documentation for ATIS-Draft-03-00-79

Complex Type: CptTransferClusterList

[Table of contents]

Super-types: None
Sub-types: None
Name CptTransferClusterList
Used by (from the same schema document) Element cptTransferClusterList
Abstract no
XML Instance Representation
<...>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<routes> [0..1]
Start Sequence [1..500]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<stoppoints> [0..1]
Start Sequence [1..25000]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Sequence
</stoppoints>
<updated-since> CPT-DateTime </updated-since> [0..1]
<clusters> [1]
Start Sequence [1..10000]
<cluster> CPTTransferCluster </cluster> [1]
End Sequence
</clusters>
<clusters-deleted> [1]
Start Sequence [1..10000]
<clusters-deleted-item> CPTTransferClusterIden </clusters-deleted-item> [1]
End Sequence
</clusters-deleted>
</...>

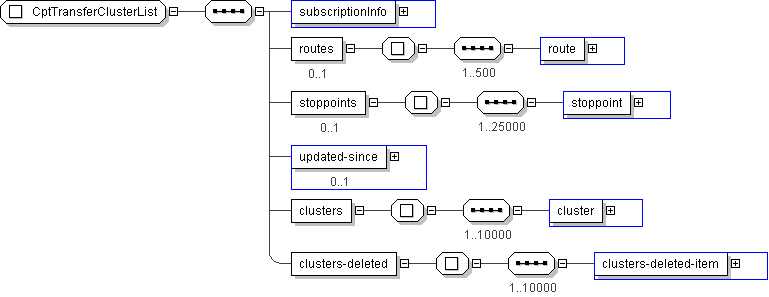

Diagram
h-527207252 h-963684166 h2146772752 h1272267302 h1711554605 h1283527889
Schema Component Representation
<xs:complexType name="CptTransferClusterList">
<xs:sequence>
<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>
<xs:element name="routes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="500">
<xs:element name="route" type=" SCHRouteIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="stoppoints" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="25000">
<xs:element name="stoppoint" type=" CPTStoppointIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="updated-since" type=" CPT-DateTime " minOccurs="0"/>
<xs:element name="clusters">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="cluster" type=" CPTTransferCluster "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="clusters-deleted">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="clusters-deleted-item" type=" CPTTransferClusterIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
