Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CPTTransferCluster
Used by (from the same schema document)	Complex Type CptTransferClusterList
Abstract	no

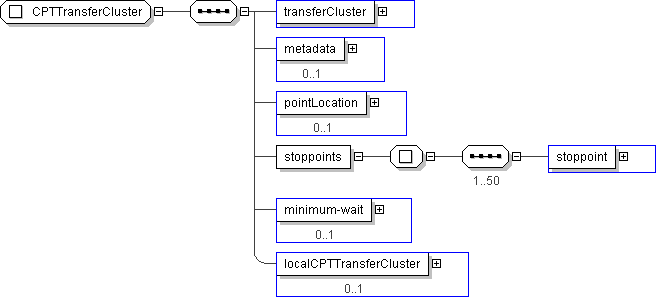

XML Instance Representation

<...>

<transferCluster> CPTTransferClusterIden </transferCluster> [1]

<metadata> CPTRowMetaData </metadata> [0..1]

<pointLocation> lrms:GeoLocation </pointLocation> [0..1]

<stoppoints> [1]
Start Sequence [1..50]

<stoppoint> CPTStoppointIden </stoppoint> [1]

End Sequence
</stoppoints>

<minimum-wait> CPT-Duration </minimum-wait> [0..1]

<localCPTTransferCluster> local:CPTTransferCluster </localCPTTransferCluster> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CPTTransferCluster">

<xs:sequence>

<xs:element name="transferCluster" type=" CPTTransferClusterIden "/>

<xs:element name="metadata" type=" CPTRowMetaData " minOccurs="0"/>

<xs:element name="pointLocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="stoppoints">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="50">

<xs:element name="stoppoint" type=" CPTStoppointIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="minimum-wait" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="localCPTTransferCluster" type=" local:CPTTransferCluster " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
