Documentation for ATIS-Draft-03-00-79

Element: cptTransferClusterList

[Table of contents]

Name cptTransferClusterList
Type CptTransferClusterList
Nillable no
Abstract no

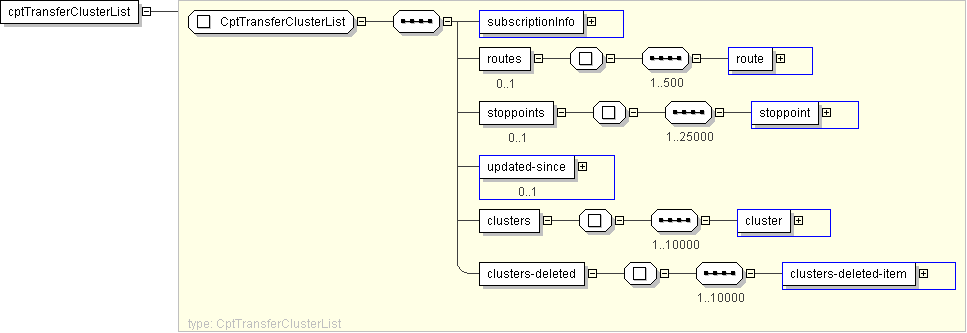

Logical Diagram
h-841091506 h-1124933139 h220470408 h-1764336740 h-1392635160
XML Instance Representation
<cptTransferClusterList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<routes> [0..1]
Start Sequence [1..500]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<stoppoints> [0..1]
Start Sequence [1..25000]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Sequence
</stoppoints>
<updated-since> CPT-DateTime </updated-since> [0..1]
<clusters> [1]
Start Sequence [1..10000]
<cluster> CPTTransferCluster </cluster> [1]
End Sequence
</clusters>
<clusters-deleted> [1]
Start Sequence [1..10000]
<clusters-deleted-item> CPTTransferClusterIden </clusters-deleted-item> [1]
End Sequence
</clusters-deleted>
</cptTransferClusterList>

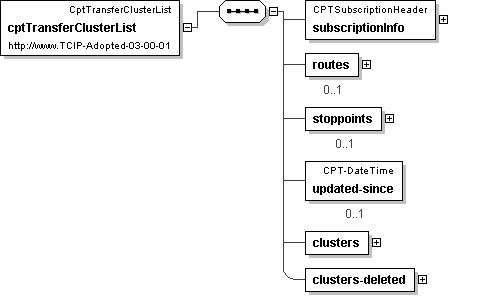

Diagram
h-527207252 h-963684166 h2146772752 h1272267302 h1711554605 h1283527889
Schema Component Representation
<xs:element name="cptTransferClusterList" type=" CptTransferClusterList "/>
