Documentation for ATIS-Draft-03-00-79

Complex Type: CcTravelerRequestLogSub

[Table of contents]

Super-types: None
Sub-types: None
Name CcTravelerRequestLogSub
Used by (from the same schema document) Element ccTravelerRequestLogSub
Abstract no
XML Instance Representation
<...>
<header> CPTSubscriptionHeader </header> [1]
<being-time> CPT-DateTime </being-time> [1]
<end-time> CPT-DateTime </end-time> [1]
<specific-routes> [0..1]
Start Sequence [1..100]
<specific-route> SCHRouteIden </specific-route> [1]
End Sequence
</specific-routes>
<specific-vehicles> [0..1]
Start Sequence [1..10000]
<specific-vehicle> CPTVehicleIden </specific-vehicle> [1]
End Sequence
</specific-vehicles>
<specific-stops> [0..1]
Start Sequence [1..10000]
<specific-stop> CPTStoppointIden </specific-stop> [1]
End Sequence
</specific-stops>
</...>

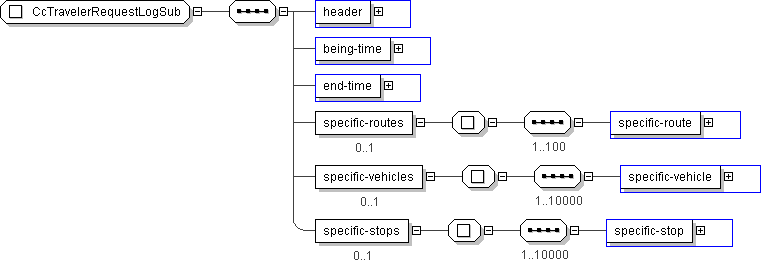

Diagram
h-527207252 h1272267302 h1272267302 h-963684166 h1471596526 h2146772752
Schema Component Representation
<xs:complexType name="CcTravelerRequestLogSub">
<xs:sequence>
<xs:element name="header" type=" CPTSubscriptionHeader "/>
<xs:element name="being-time" type=" CPT-DateTime "/>
<xs:element name="end-time" type=" CPT-DateTime "/>
<xs:element name="specific-routes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="specific-route" type=" SCHRouteIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="specific-vehicles" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="specific-vehicle" type=" CPTVehicleIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="specific-stops" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="specific-stop" type=" CPTStoppointIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
