Documentation for ATIS-Draft-03-00-79

Complex Type: CcFleetPassengerData

[Table of contents]

Super-types: None
Sub-types: None
Name CcFleetPassengerData
Used by (from the same schema document) Element ccFleetPassengerData
Abstract no
XML Instance Representation
<...>
<subscription-info> CPTSubscriptionHeader </subscription-info> [1]
<groups> [0..1]
Start Sequence [1..100]
<group> CPT-FleetSubset </group> [1]
End Sequence
</groups>
<selected-vehicles> [0..1]
Start Sequence [1..30000]
<selected-vehicle> CPTVehicleIden </selected-vehicle> [1]
End Sequence
</selected-vehicles>
<selected-routes> [0..1]
Start Sequence [1..100]
<selected-route> SCHRouteIden </selected-route> [1]
End Sequence
</selected-routes>
<vehicle-pass-records> [0..1]
Start Sequence [1..30000]
<vehicle-pass-record> CCVehiclePassRecord </vehicle-pass-record> [1]
End Sequence
</vehicle-pass-records>
<localCcFleetPassengerData> local:CcFleetPassengerData </localCcFleetPassengerData> [0..1]
</...>

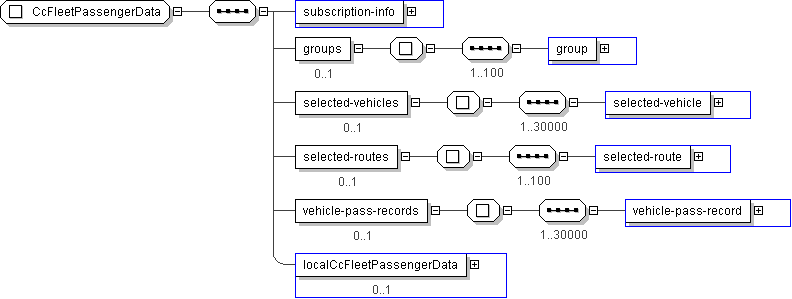

Diagram
h-527207252 h918121125 h1471596526 h-963684166 h1250250505 h576746811
Schema Component Representation
<xs:complexType name="CcFleetPassengerData">
<xs:sequence>
<xs:element name="subscription-info" type=" CPTSubscriptionHeader "/>
<xs:element name="groups" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="group" type=" CPT-FleetSubset "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="selected-vehicles" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="30000">
<xs:element name="selected-vehicle" type=" CPTVehicleIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="selected-routes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="selected-route" type=" SCHRouteIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="vehicle-pass-records" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="30000">
<xs:element name="vehicle-pass-record" type=" CCVehiclePassRecord "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="localCcFleetPassengerData" type=" local:CcFleetPassengerData " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
