Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

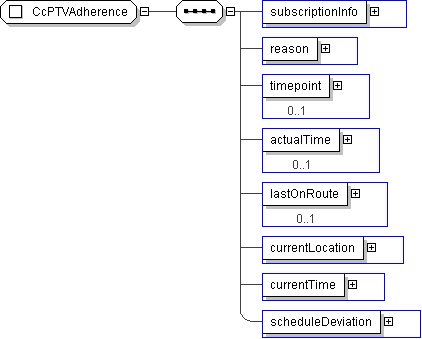

Name	CcPTVAdherence
Used by (from the same schema document)	Element ccPTVAdherence
Abstract	no

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<reason> CC-AdherenceMsgType </reason> [1]

<timepoint> SCHTimepointIden </timepoint> [0..1]

<actualTime> SCH-Time </actualTime> [0..1]

<lastOnRoute> lrms:GeoLocation </lastOnRoute> [0..1]

<currentLocation> lrms:GeoLocation </currentLocation> [1]

<currentTime> CPT-DateTime </currentTime> [1]

<scheduleDeviation> CPT-Duration </scheduleDeviation> [1]

</...>

Schema Component Representation

<xs:complexType name="CcPTVAdherence">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="reason" type=" CC-AdherenceMsgType "/>

<xs:element name="timepoint" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="actualTime" type=" SCH-Time " minOccurs="0"/>

<xs:element name="lastOnRoute" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="currentLocation" type=" lrms:GeoLocation "/>

<xs:element name="currentTime" type=" CPT-DateTime "/>

<xs:element name="scheduleDeviation" type=" CPT-Duration "/>

</xs:sequence>

</xs:complexType>
