Documentation for ATIS-Draft-03-00-79

Element: ccPTVAdherence

[Table of contents]

Name ccPTVAdherence
Type CcPTVAdherence
Nillable no
Abstract no

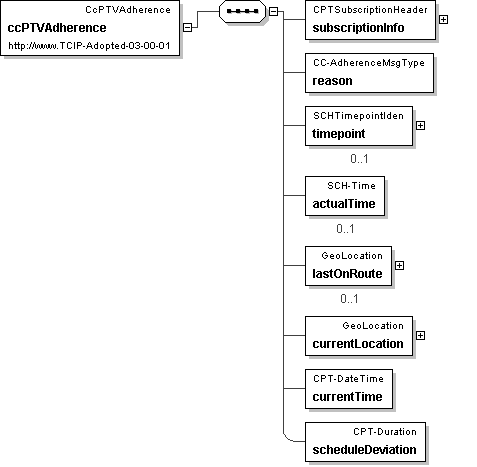

Logical Diagram
h-841091506 h630409568 h2140896113 h1927296267
XML Instance Representation
<ccPTVAdherence>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<reason> CC-AdherenceMsgType </reason> [1]
<timepoint> SCHTimepointIden </timepoint> [0..1]
<actualTime> SCH-Time </actualTime> [0..1]
<lastOnRoute> lrms:GeoLocation </lastOnRoute> [0..1]
<currentLocation> lrms:GeoLocation </currentLocation> [1]
<currentTime> CPT-DateTime </currentTime> [1]
<scheduleDeviation> CPT-Duration </scheduleDeviation> [1]
</ccPTVAdherence>

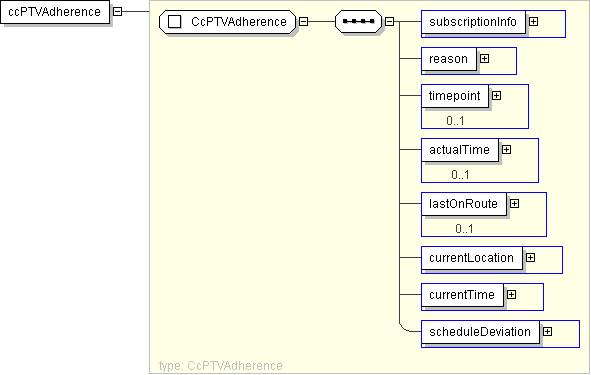

Diagram
h-527207252 h-507619546 h1668863444 h1149568775 h-542031743 h-542031743 h1272267302 h1782472735
Schema Component Representation
<xs:element name="ccPTVAdherence" type=" CcPTVAdherence "/>
