Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CcPollParameters
Used by (from the same schema document)	Element ccPollParameters
Abstract	no

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<nAgencyDataMaxTries> CPT-GenericCounter </nAgencyDataMaxTries> [0..1]

<nAllocRetry> CPT-GenericCounter </nAllocRetry> [0..1]

<nBitRate> CPT-GenericCounter </nBitRate> [0..1]

<nBitSync> CPT-GenericCounter </nBitSync> [0..1]

<nCtlPTVQ> CPT-GenericCounter </nCtlPTVQ> [0..1]

<nMaxBadPoll> CPT-GenericCounter </nMaxBadPoll> [0..1]

<nMaxMsgLengthToPTV> CPT-GenericCounter </nMaxMsgLengthToPTV> [0..1]

<nMaxMsgLengthFromPTV> CPT-GenericCounter </nMaxMsgLengthFromPTV> [0..1]

<nMsgMaxTries> CPT-GenericCounter </nMsgMaxTries> [0..1]

<tRadioTime> CPT-MillisecondDuration </tRadioTime> [0..1]

<tFastPollInterval> CPT-Duration </tFastPollInterval> [0..1]

<tPriorityPoll> CPT-Duration </tPriorityPoll> [0..1]

<tSessionOnly> CPT-Duration </tSessionOnly> [0..1]

<tSessionPollStart> CPT-Duration </tSessionPollStart> [0..1]

<tStartup> CPT-Duration </tStartup> [0..1]

<tSessionPoll> CPT-Duration </tSessionPoll> [0..1]

<init-polling-groups> [0..1]
Start Sequence [1..255]

<init-polling-group> CCPollingGroupInit </init-polling-group> [1]

End Sequence
</init-polling-groups>

<add-group-PTVs> [0..1]
Start Sequence [1..200]

<add-group-PTV> CCPollingGroupUpdate </add-group-PTV> [1]

End Sequence
</add-group-PTVs>

<ptv-poll-datasets> [0..1]
Start Sequence [1..3000]

<ptv-poll-dataset> CCPollControl </ptv-poll-dataset> [1]

End Sequence
</ptv-poll-datasets>

</...>

Schema Component Representation

<xs:complexType name="CcPollParameters">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<-- global configuration into for controller -->

<xs:element name="nAgencyDataMaxTries" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="nAllocRetry" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="nBitRate" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="nBitSync" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="nCtlPTVQ" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="nMaxBadPoll" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="nMaxMsgLengthToPTV" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="nMaxMsgLengthFromPTV" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="nMsgMaxTries" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="tRadioTime" type=" CPT-MillisecondDuration " minOccurs="0"/>

<xs:element name="tFastPollInterval" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="tPriorityPoll" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="tSessionOnly" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="tSessionPollStart" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="tStartup" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="tSessionPoll" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="init-polling-groups" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="255">

<xs:element name="init-polling-group" type=" CCPollingGroupInit "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="add-group-PTVs" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="200">

<xs:element name="add-group-PTV" type=" CCPollingGroupUpdate "/>

<-- PTV SPecific parameters -->

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="ptv-poll-datasets" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="3000">

<xs:element name="ptv-poll-dataset" type=" CCPollControl "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:

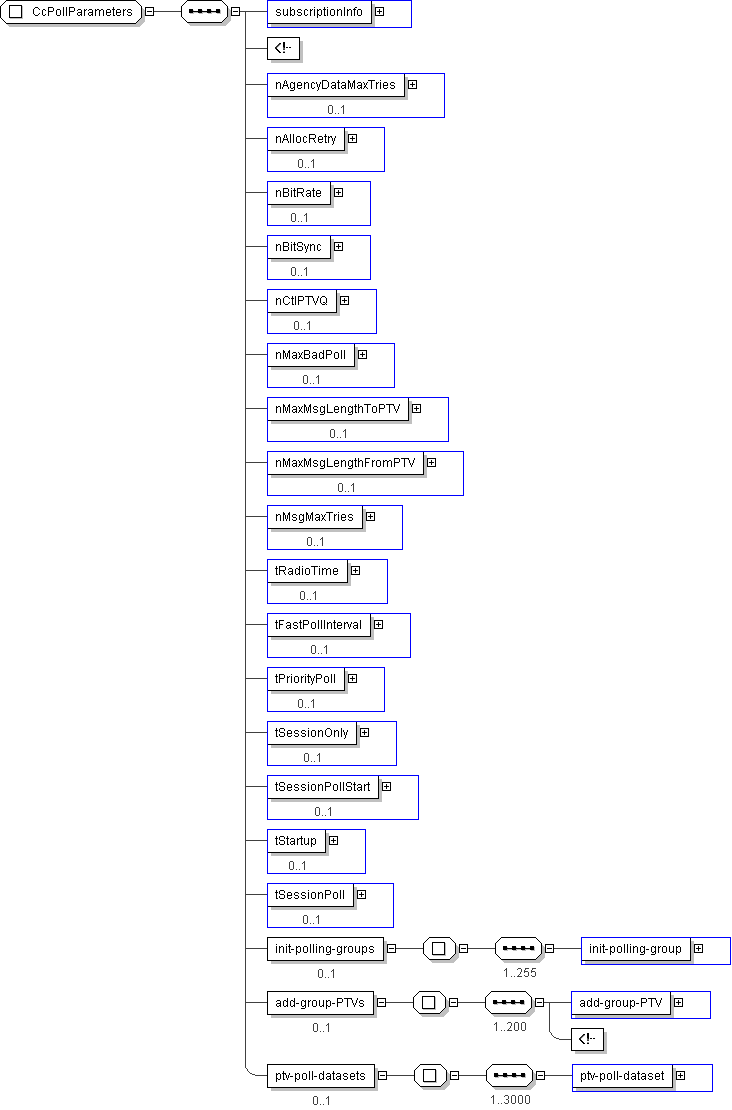

Complex Type: CcPollParameters
