Documentation for ATIS-Draft-03-00-79

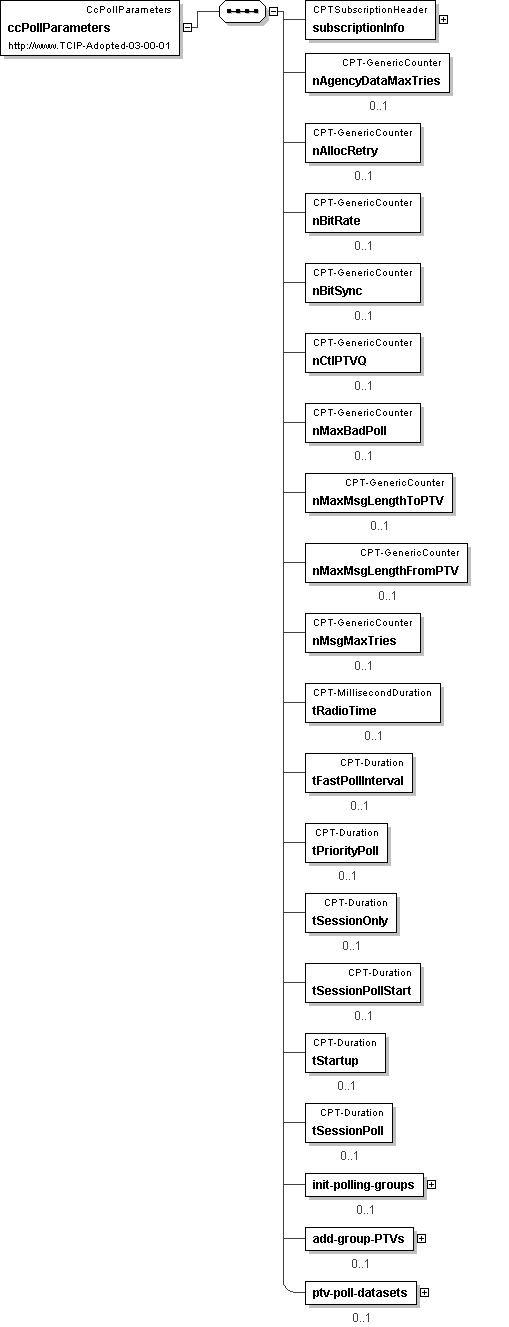

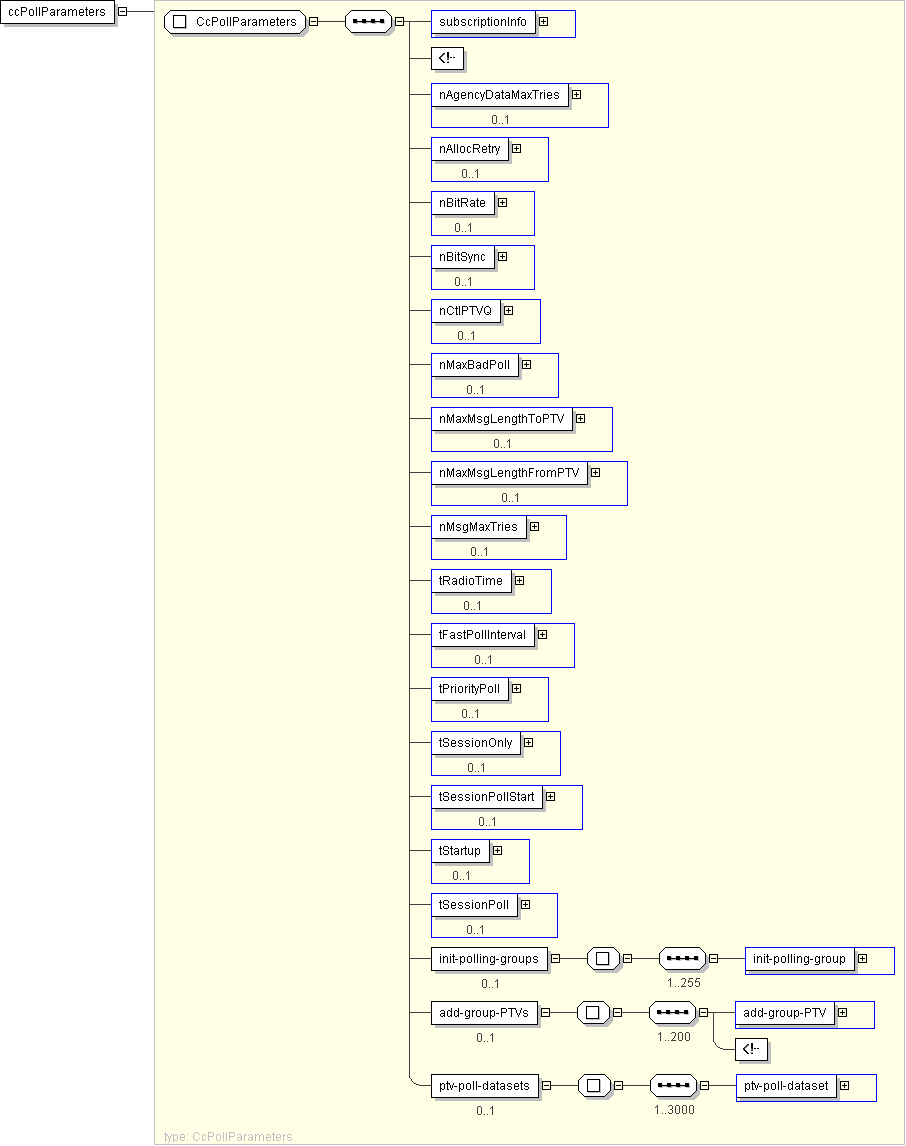

XML Instance Representation

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<nAgencyDataMaxTries> CPT-GenericCounter </nAgencyDataMaxTries> [0..1]

<nAllocRetry> CPT-GenericCounter </nAllocRetry> [0..1]

<nBitRate> CPT-GenericCounter </nBitRate> [0..1]

<nBitSync> CPT-GenericCounter </nBitSync> [0..1]

<nCtlPTVQ> CPT-GenericCounter </nCtlPTVQ> [0..1]

<nMaxBadPoll> CPT-GenericCounter </nMaxBadPoll> [0..1]

<nMaxMsgLengthToPTV> CPT-GenericCounter </nMaxMsgLengthToPTV> [0..1]

<nMaxMsgLengthFromPTV> CPT-GenericCounter </nMaxMsgLengthFromPTV> [0..1]

<nMsgMaxTries> CPT-GenericCounter </nMsgMaxTries> [0..1]

<tRadioTime> CPT-MillisecondDuration </tRadioTime> [0..1]

<tFastPollInterval> CPT-Duration </tFastPollInterval> [0..1]

<tPriorityPoll> CPT-Duration </tPriorityPoll> [0..1]

<tSessionOnly> CPT-Duration </tSessionOnly> [0..1]

<tSessionPollStart> CPT-Duration </tSessionPollStart> [0..1]

<tStartup> CPT-Duration </tStartup> [0..1]

<tSessionPoll> CPT-Duration </tSessionPoll> [0..1]

<init-polling-groups> [0..1]
Start Sequence [1..255]

<init-polling-group> CCPollingGroupInit </init-polling-group> [1]

End Sequence
</init-polling-groups>

<add-group-PTVs> [0..1]
Start Sequence [1..200]

<add-group-PTV> CCPollingGroupUpdate </add-group-PTV> [1]

End Sequence
</add-group-PTVs>

<ptv-poll-datasets> [0..1]
Start Sequence [1..3000]

<ptv-poll-dataset> CCPollControl </ptv-poll-dataset> [1]

End Sequence
</ptv-poll-datasets>

</ccPollParameters>
