Documentation for ATIS-Draft-03-00-79

Complex Type: PiAnnouncementsListSub

[Table of contents]

Super-types: None
Sub-types: None
Name PiAnnouncementsListSub
Used by (from the same schema document) Element piAnnouncementsListSub
Abstract no
XML Instance Representation
<...>
<header> CPTSubscriptionHeader </header> [1]
<agency-ids> [0..1]
Start Sequence [1..100]
<agency-id> CPT-AgencyID </agency-id> [1]
End Sequence
</agency-ids>
<zones> [0..1]
Start Sequence [1..100]
<zone> PIServiceZoneIden </zone> [1]
End Sequence
</zones>
<stoppoints> [0..1]
Start Sequence [1..100]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Sequence
</stoppoints>
<routes> [0..1]
Start Sequence [1..100]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
</...>

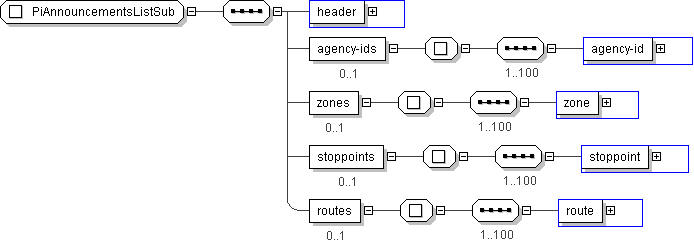

Diagram
h-527207252 h948193899 h506659239 h2146772752 h-963684166
Schema Component Representation
<xs:complexType name="PiAnnouncementsListSub">
<xs:sequence>
<xs:element name="header" type=" CPTSubscriptionHeader "/>
<xs:element name="agency-ids" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="agency-id" type=" CPT-AgencyID "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="zones" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="zone" type=" PIServiceZoneIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="stoppoints" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="stoppoint" type=" CPTStoppointIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="routes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="route" type=" SCHRouteIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
